Part#:BMI1003P31A

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

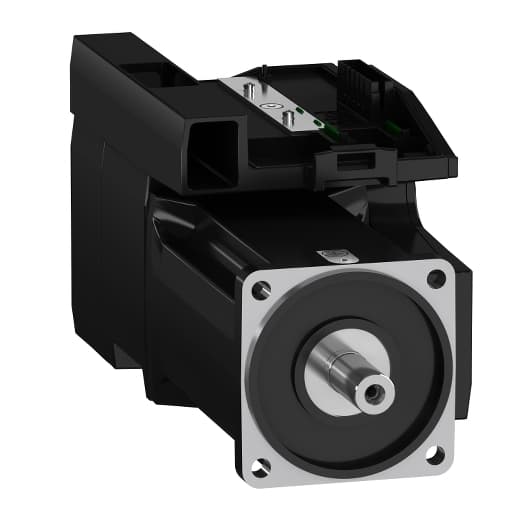

Schneider Electric BMI1003P31A is an AC servo motor within the Servo motors sub-range, featuring an integrated servo drive and motor. It is designed with an absolute single-turn 128ppr SinCos encoder and a keyed shaft, alongside triple (3) motor stacks. The servo motor operates on a supply voltage ranging from 208Vac to 480Vac, including specific ratings at 220Vac, 240Vac, and 400Vac. It offers a degree of protection rated at IP65 and supports a rated current of 4.3A at 1500rpm with 208Vac, 3.85A at 3000rpm with 400Vac, and 3.55A at 3600rpm with 480Vac. The mounting mode is facilitated by a 100x100mm flange. Communication is enabled through the HIPERFACE protocol. The net width of the motor is 100 mm. It achieves rotational speeds of 1500rpm at 208Vac, 3000rpm at 400Vac, and 3600rpm at 480Vac, with rated active power of 1.13kW / 1130W at 1500rpm with 208Vac, 2.01kW / 2010W at 3000rpm with 400Vac, and 2.1kW / 2100W at 3600rpm with 480Vac. The maximum torque is 18.87Nm, with a stall torque of 7.31Nm, and operational torques of 7.22Nm at 1500rpm with 208Vac, 6.38Nm at 3000rpm with 400Vac, and 5.57Nm at 3600rpm with 480Vac. The moment of inertia is rated at 9.37kg.cm2.

Product Details

  • Continuous Stall Torque
    75.23 lbf.in (8.5 N.m) 208...480 V three phase
  • Second Shaft
    Without second shaft end
  • Product Or Component Type
    Servo motor with power stage
  • Range Compatibility
    Lexium 32i
  • Shaft Diameter
    0.75 in (19 mm)
  • Stator Electrical Time Constant
    4.95 ms 68 °F (20 °C)
  • Centring Collar Depth
    0.14 in (3.5 mm)
  • [Us] Rated Supply Voltage
    208...480 V - 15...10 %
  • Feedback Type
    Absolute single turn SinCos Hiperface
  • Number Of Motor Poles
    10
  • Shaft Length
    1.57 in (40 mm)
  • Electrical Connection
    Printed circuit board connector
  • Stator Resistance
    2.31 Ohm 68 °F (20 °C)
  • Network Frequency Limits
    47.5…63 Hz
  • Continuous Output Current
    4 A 8 kHz
  • Distance Shaft Shoulder-Flange
    0.14 in (3.5 mm)
  • Output Current 3S Peak
    12 A 400 V 3 s
  • Key Width
    0.24 in (6 mm)
  • Mounting Support
    International standard flange
  • Type Of Cooling
    Natural convection
  • Supply Voltage Limits
    208…480 V
  • Phase
    Three phase
  • EMC Filter
    Integrated
  • Holding Brake
    Without
  • Stator Inductance
    11.43 mH 68 °F (20 °C)
  • Speed Feedback Resolution
    131072 points/turn
  • Maximum Axial Force Fa
    0.2 x Fr
  • Circle Diameter Of The Mounting Holes
    4.53 in (115 mm)
  • Supply Frequency
    50/60 Hz - 5...5 %
  • Motor Flange Size
    3.94 in (100 mm)
  • Mounting Holes Diameter
    0.35 in (9 mm)
  • Maximum Mechanical Speed
    6000 rpm
  • Torque Constant
    1.7 N.m/A 68 °F (20 °C)
  • Length
    11.77 in (299 mm)
  • Continuous Stall Current
    4 A
  • Device Short Name
    BMI
  • Shaft End
    Keyed
  • Rotor Inertia
    9.37 kg.cm²
  • Number Of Mounting Holes
    4
  • Back Emf Constant
    112 V/krpm 68 °F (20 °C)
  • Number Of Motor Stacks
    3
  • Centring Collar Diameter
    3.74 in (95 mm)
  • Product Compatibility
    Drive control unit LXM32i CANopen Drive control unit LXM32i EtherCAT
  • Peak Stall Torque
    169.93 lbf.in (19.2 N.m) 400 V three phase 169.93 lbf.in (19.2 N.m) 480 V three phase 169.93 lbf.in (19.2 N.m) 208 V three phase
  • Nominal Torque
    63.73 lbf.in (7.2 N.m) 208 V three phase 60.18 lbf.in (6.8 N.m) 400 V three phase 49.56 lbf.in (5.6 N.m) 480 V three phase
  • Nominal Speed
    1500 rpm 208 V three phase 3000 rpm 400 V three phase 3700 rpm 480 V three phase
  • Maximum Current Irms
    26.7 A 208 V, three phase 26.7 A 400 V, three phase 26.7 A 480 V, three phase
  • Nominal Output Power
    1000 W 208 V three phase 2000 W 400 V three phase 2100 W 480 V three phase
  • Maximum Radial Force Fr
    1050 N 1000 rpm 830 N 2000 rpm 730 N 3000 rpm 660 N 4000 rpm 610 N 5000 rpm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BMI1003P31A on Powermatic Associates is $3,498.45. Order now.
