HOM2175SB Schneider Electric Industrial Automation Components

HOM2175SB on Powermatic Associates
Schneider Electric

Part#:HOM2175SB

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

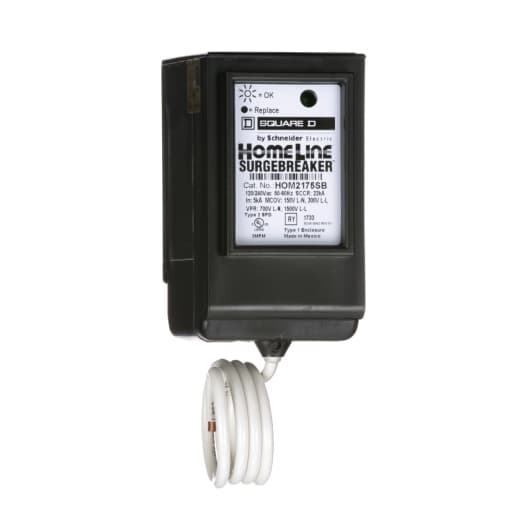

Square D by Schneider Electric HOM2175SB is a load center designed for use with a secondary surge arrestor. It has a rated current of 5A and operates at a rated voltage of 120Vac/240Vac. This load center is protected by a NEMA 1 enclosure and is suitable for single-phase (1PH) electrical networks.

Product Details

  • Range
    Homeline
  • SCCR
    22 kA
  • Height
    3.7 in (93.98 mm)
  • Wiring Configuration
    3-wire
  • Depth
    2.6 in (66.04 mm)
  • Local Signalling
    1 LED green normal operation
  • Product
    Surge protection device
  • Number Of Phases
    1 phase
  • Width
    2 in (50.80 mm)
  • Surge Current
    22.5 kA
  • Rated Current
    5 kA
  • Voltage Rating
    120/240 V AC
  • Product Destination
    Load center Homeline
  • MCOV
    150 V 300 V

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HOM2175SB on Powermatic Associates is $159.00. Order now.

HOM2175SB Related Documents

Instruction Sheet-1631040918212.pdfCatalog-1631040918217.pdfProduct Datasheet-1631040918215.pdf
