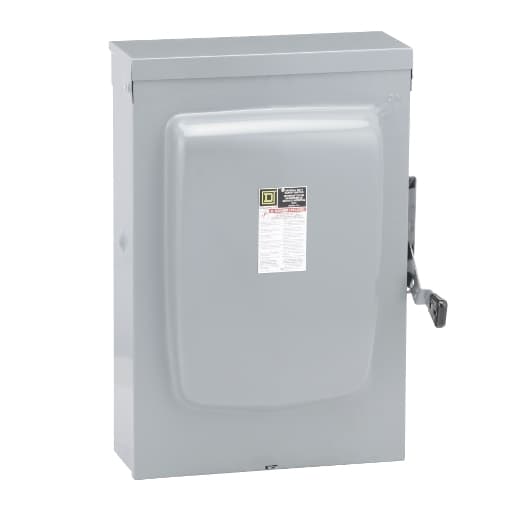

CD226NR Schneider Electric Electronic Components

CD226NR on Powermatic Associates
Schneider Electric

Part#:CD226NR

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

Safety switch, general duty, fusible, 600A, 120/240 VAC, 2 poles, solid neutral, NEMA 3R

Product Details

  • Device Composition
    Neutral (factory installed)
  • Height
    49.13 in (1247.90 mm)
  • Electrical Connection
    Lugs
  • Number Of Poles
    2
  • AWG Gauge
    AWG 3/0...500 kcmil copper or aluminium
  • Series Name
    General duty
  • Disconnector Device Type
    Fusible disconnect
  • Short-Circuit Current
    100 kA maximum cartridge
  • Tightening Torque
    450 lbf.in (50.84 N.m) (AWG 4...500 kcmil)
  • Device Mounting
    Surface
  • Product Or Component Type
    Single Throw Safety Switch
  • Width
    25.13 in (638.30 mm)
  • [Ue] Rated Operational Voltage
    120/240 V AC
  • Depth
    8.88 in (225.55 mm)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CD226NR on Powermatic Associates is $6,255.00. Order now.
