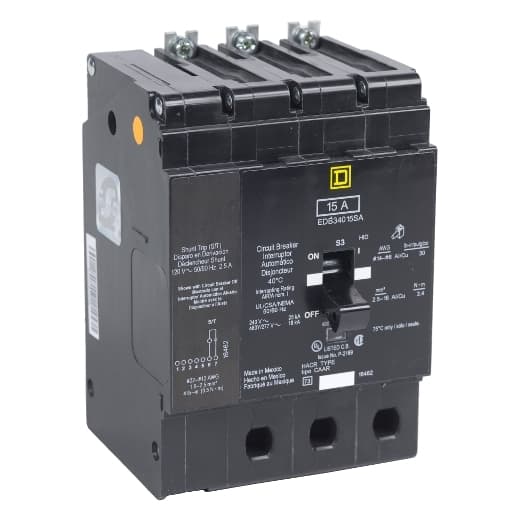

EGB34025SA Schneider Electric Industrial Automation Components

Product Details

• Line Rated Current
  25 A
• Product Destination
  NF panelboard
• Depth
  4.05 in (102.87 mm)
• Module Type
  E-Frame
• Range Of Product
  125 A Frame EDB-EGB-EJB
• Holding Current
  270 A
• Height
  5.66 in (143.76 mm)
• Number Of Spaces Required
  4
• Trip Unit Technology
  Thermal-magnetic
• Number Of Spaces
  4
• Device Short Name
  EGB
• Width
  3.92 in (99.57 mm)
• Trip Unit Rating
  875 A
• Number Of Poles
  3
• Breaking Capacity Code
  G
• Net Weight
  4 lb(US) (1.81 kg)
• Product Or Component Type
  Miniature circuit-breaker
• Electrical Connection
  Lugs aluminium
• Tightening Torque
  30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6)
• Maximum Operating Voltage
  480Y/277 V AC
Local Signalling
Trip indicator
Mounting Mode
Bolt-on
Device Composition
Shunt trip
Circuit Breaker Application
HACR rated HID rated
AWG Gauge
AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper
Protection Type
Short-circuit Overload
Breaking Capacity
35 kA 277 V AC 65 kA 240 V AC 35 kA 480Y/277 V AC 65 kA 120 V AC 65 kA 120/240 V AC
