EJB24100 Schneider Electric Industrial Automation Components

EJB24100 on Powermatic Associates
Schneider Electric

Part#:EJB24100

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

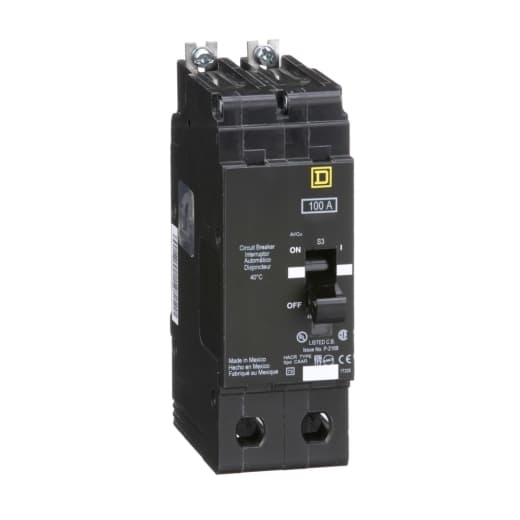

Square D by Schneider Electric EJB24100 is a Miniature Circuit Breaker (MCB) designed for bolt-on mounting with a visual trip indicator. It features lugs type terminals and operates at a rated voltage of 480 V AC. This MCB serves as both an Equipment Protection Device (EPD) and a Circuit Breaker (CB) with a breaking capacity code J. It offers short-circuit and overload protection functions, utilizing an aluminium lugs connection. The rated current is 100A, and it is a 2 Pole device with a cross-section range of 12-2/0AWG. The short circuit breaking rating is specified as 100kA at 120Vac and 240Vac, and 65kA at 480Y/277Vac. It incorporates a thermal-magnetic trip unit with protection settings at a trip unit rating of 2300A.

Product Details

  • Module Type
    E-Frame
  • Mounting Mode
    Bolt-on
  • Device Short Name
    EJB
  • Circuit Breaker Application
    HACR rated
  • Depth
    4.05 in (102.87 mm)
  • Product Or Component Type
    Miniature circuit-breaker
  • Local Signalling
    Trip indicator
  • Range Of Product
    125 A Frame EDB-EGB-EJB
  • Electrical Connection
    Lugs aluminium
  • Height
    5.66 in (143.76 mm)
  • Breaking Capacity Code
    J
  • Holding Current
    1000 A
  • Trip Unit Rating
    2300 A
  • Product Destination
    NF panelboard
  • Number Of Spaces Required
    2
  • Width
    1.96 in (49.78 mm)
  • Maximum Operating Voltage
    480Y/277 V AC
  • Number Of Spaces
    2
  • Trip Unit Technology
    Thermal-magnetic
  • Line Rated Current
    100 A
  • Number Of Poles
    2
  • Net Weight
    3 lb(US) (1.36 kg)
  • Protection Type
    Overload Short-circuit
  • AWG Gauge
    AWG 12...AWG 2/0 aluminium AWG 14...AWG 2/0 copper
  • Tightening Torque
    34.52 lbf.in (3.9 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 10) 49.56 lbf.in (5.6 N.m) 0.02…0.11 in² (10…70 mm²) (AWG 8...AWG 2/0)
  • Breaking Capacity
    65 kA 277 V AC 100 kA 240 V AC 65 kA 480Y/277 V AC 100 kA 120 V AC 100 kA 120/240 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EJB24100 on Powermatic Associates is $2,135.00. Order now.
