EJB34030CA Schneider Electric Industrial Automation Components

EJB34030CA on Powermatic Associates
Schneider Electric

Part#:EJB34030CA

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - EJB34030CA

Product Details

  • Module Type
    E-Frame
  • Holding Current
    270 A
  • Trip Unit Technology
    Thermal-magnetic
  • Line Rated Current
    30 A
  • Number Of Poles
    3
  • Width
    2.94 in (74.68 mm)
  • Mounting Mode
    Bolt-on
  • Height
    5.66 in (143.76 mm)
  • Device Short Name
    EJB
  • Product Or Component Type
    Miniature circuit-breaker
  • Number Of Spaces
    3
  • Depth
    4.05 in (102.87 mm)
  • Local Signalling
    Trip indicator
  • Breaking Capacity Code
    J
  • Net Weight
    4 lb(US) (1.81 kg)
  • Number Of Spaces Required
    3
  • Trip Unit Rating
    875 A
  • Electrical Connection
    Lugs aluminium
  • Tightening Torque
    30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6)
  • Range Of Product
    125 A Frame EDB-EGB-EJB
  • Maximum Operating Voltage
    480Y/277 V AC
  • Product Destination
    NF panelboard
  • AWG Gauge
    AWG 12...AWG 6 aluminium AWG 14...AWG 6 copper
  • Protection Type
    Short-circuit Overload
  • Circuit Breaker Application
    HID rated HACR rated
  • Breaking Capacity
    65 kA 277 V AC 100 kA 240 V AC 65 kA 480Y/277 V AC 100 kA 120 V AC 100 kA 120/240 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EJB34030CA on Powermatic Associates is $1,630.00. Order now.

EJB34030CA Related Documents

Product Datasheet-1631034954684.pdfInstruction Sheet-1631034954682.pdfCatalog-1631034954695.pdf

Similar products from: Schneider Electric Industrial Automation Components

M9A26969 on Powermatic Associates

M9A26969

Schneider Electric

Schneider Electric M9A26969 is a tripping coil designed for undervoltage trip coil release (MNx) applications. It belongs to the sub-range of tripping coils and is engineered for DIN rail mounting. This part operates with a control voltage of 230Vac AC.

0 in stock
XB7EV04MP on Powermatic Associates

XB7EV04MP

Schneider Electric

Schneider Electric XB7EV04MP is a monolithic pilot light designed for signaling applications, featuring an integral LED for illumination. This component, part of the XB7 sub-range, is constructed with a plastic body and has a round shape. It offers a rated impulse voltage (Uimp) of 6 kV and is protected to a degree of IP65, NEMA 4, and NEMA 12, ensuring its suitability for various industrial environments. The pilot light operates on a network frequency of 50/60 Hz and requires a supply voltage of 230 V AC. It has a diameter of 22 mm, with net dimensions of 29 mm in height, 54 mm in depth, and 29 mm in width. The light emitted by the LED is red, and it features screw-clamp type terminals for connection.

0 in stock
MG17416 on Powermatic Associates

MG17416

Schneider Electric

Schneider Electric MG17416 is a Miniature Circuit Breaker (MCB) designed as a supplementary protector within the C60 UL1077 sub-range. It features a rated current of 15A and operates on a single pole (1 Pole(s)) configuration. The rated operating voltage (Ue) for this MCB is 277 V. It offers a short circuit breaking rating of 10kA AIR at 240Vac, 5kA AIR at 277Vac, and 10kA AIR at 65Vdc, with protection extended to 1 Pole(s). The tripping curve for this device is classified as type C.

0 in stock
BDL36070 on Powermatic Associates

BDL36070

Schneider Electric

Square D by Schneider Electric BDL36070 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range, featuring a PowerPact B-Frame 100 TMD 3P 70A design for 600Y/347Vac with a 14kA breaking capacity and 80% rated Everlink (Creep compensating) lugs on both line and load sides. It has a rated impulse voltage (Uimp) of 8 kV and offers a degree of protection of IP40. The rated current is 70A, with a rated voltage (AC) of 600Vac 600Y/347Vac. It boasts a mechanical durability of 20,000 operations at no load and can be mounted on a DIN rail or as an individual unit on a plate. This 3-pole (3P) circuit breaker has dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. It falls under utilisation category A and features over-current protection fixed at 70A, short-circuit hold current fixed at 640A, and short-circuit trip current fixed at 960A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. It provides thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 70 AT and an electrical durability of 10,000 operations with load at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mechanism. The short circuit breaking rating varies by voltage, with 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, and 14kA at 600Y/347Vac according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

0 in stock
NSYTRACRE24 on Powermatic Associates

NSYTRACRE24

Schneider Electric

Schneider Electric - NSYTRACRE24

30 in stock
M9F53315 on Powermatic Associates

M9F53315

Schneider Electric

Schneider Electric M9F53315 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed to comply with UL489 standards. This 3-pole MCB has a rated current of 15A and features a rated insulation voltage (Ui) of 500V, with a rated impulse voltage (Uimp) of 6kV. It offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 125Vdc. The rated voltage (AC) for phase-to-phase is 440V. All three poles are protected, and it operates with a D tripping curve.

3 in stock

Manufacturer warranty

EJB34030CA Schneider Electric

$1,630.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$1,630.00

$1,630.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare EJB34030CA with other Industrial Automation Components products

Module Type

Holding Current

Trip Unit Technology

Line Rated Current

Number Of Poles

Width

Mounting Mode

Height

Device Short Name

Product Or Component Type

Selected product

EJB34030CA
Backordered
EJB34030CA
Schneider Electric

Schneider Electric - EJB34030CA

Module TypeE-Frame

Holding Current270 A

Trip Unit TechnologyThermal-magnetic

Line Rated Current30 A

Number Of Poles3

Width2.94 in (74.68 mm)

Mounting ModeBolt-on

Height5.66 in (143.76 mm)

Device Short NameEJB

Product Or Component TypeMiniature circuit-breaker

BDL36070
Backordered
BDL36070
Schneider Electric

Square D by Schneider Electric BDL36070 is a Moulded Case Circuit Breaker (MCCB) within the PowerPac...

Module Type-

Holding Current-

Trip Unit Technology-

Line Rated Current70 A

Number Of Poles-

Width-

Mounting ModeClip-on 35 x 15 mm symmetric...

Height-

Device Short NameBD 070

Product Or Component TypeCircuit breaker

M9F53315
3 in stock
M9F53315
Schneider Electric

Schneider Electric M9F53315 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, design...

Module Type-

Holding Current-

Trip Unit Technology-

Line Rated Current15 A 77 °F (25 °C) EN/IEC 60...

Number Of Poles-

Width-

Mounting ModeClip-on

Height-

Device Short NameC60BPR

Product Or Component TypeMiniature circuit-breaker

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

ATV340D11N4E on Powermatic Associates

ATV340D11N4E

Schneider Electric

Schneider Electric ATV340D11N4E is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar Machine 340 series. It features Safe Torque Off up to SIL3 / PLe with dual input, 5 points U/F, sensorless voltage vector control, current vector control with sensor, and Master/Slave daisy chain through PTO/PTI for MachineStruxure integration in SoMachine. It operates in velocity mode and torque control, offering 220% Tn in open or closed loop control, dynamic motor control performance (up to 400Hz speed bandwidth), and cyclic application task (1ms) with an energy-saving mode. The design includes a built-in EMC filter (class C3) and a built-in heatsink. It operates on a supply voltage of 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nom.), with dimensions of H385mm x W180mm x D249mm and an IP20 degree of protection. The rated current is 32A (normal-duty; 4kHz), 24A (heavy-duty; 4kHz), with a maximum current of 43A (normal-duty; for 2s), 43A (heavy-duty; for 2s), and 35.2A (normal-duty; for 60s), 36A (heavy-duty; for 60s). It supports cabinet mounting, Ethernet/IP, Modbus TCP communication protocols, operates on a 3-phase network with an output frequency of 1-599 Hz, and includes 1 x analog output, 5 x digital inputs, 2 x digital outputs programmable as inputs or outputs, 1 x digital output (C/O SPDT relay contact), 1 x digital output (NO relay contact), and 2 x analog inputs. The current consumption is 34A (380Vac; normal-duty), 27.3A (480Vac; normal-duty), 34.7A (380Vac; heavy-duty), 27.7A (480Vac; heavy-duty), with a rated active power of 15kW (normal-duty), 11kW (heavy-duty), and rated power of 20HP (normal-duty), 15HP (heavy-duty).

0 in stock

Relevant products

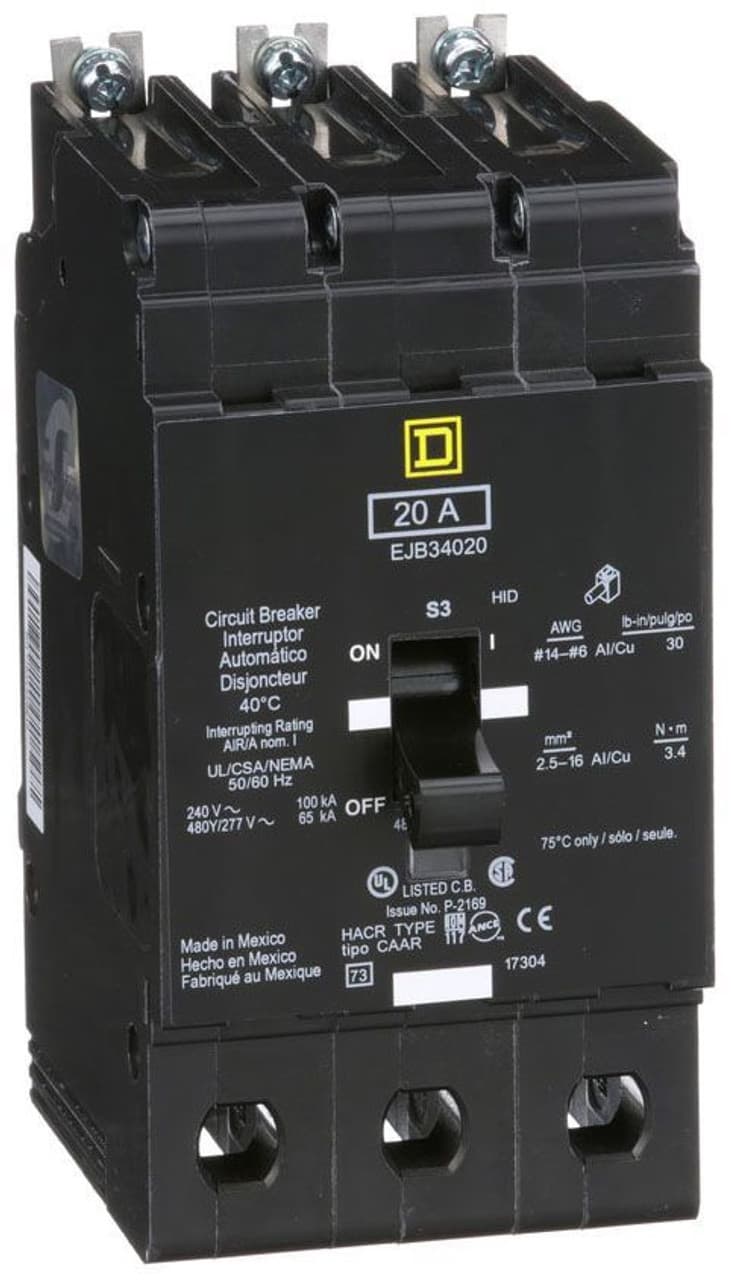

EJB34020SA on Powermatic Associates
