QOU3605283 Schneider Electric Industrial Automation Components

QOU3605283 on Powermatic Associates
Schneider Electric

Part#:QOU3605283

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Only 2 left in stock. Order Now!

Oct 28, 2026

Product description

Schneider Electric - QOU3605283

Product Details

  • Circuit Breaker Type
    Standard
  • Width
    2.25 in (57.15 mm)
  • Line Rated Current
    60 A
  • Mounting Mode
    Unit mount
  • Tightening Torque
    45 lbf.in (5.08 N.m) (AWG 14...AWG 2)
  • AWG Gauge
    AWG 14...AWG 2 aluminium/copper
  • Product Or Component Type
    Miniature circuit-breaker
  • Range Of Product
    QOU
  • Height
    4.05 in (102.87 mm)
  • Circuit Breaker Application
    HACR and Switching Duty rated
  • Depth
    2.95 in (74.93 mm)
  • Electrical Connection
    ring tongue, line side ring tongue, load side
  • [Ue] Rated Operational Voltage
    120/240 V AC 240 V AC 120 V AC 48 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QOU3605283 on Powermatic Associates is $354.00. Order now.

QOU3605283 Related Documents

Catalog-1631031131942.pdfProduct Datasheet-1631031131940.pdfInstruction Sheet-1631031131907.pdf

Similar products from: Schneider Electric Industrial Automation Components

M9A26969 on Powermatic Associates

M9A26969

Schneider Electric

Schneider Electric M9A26969 is a tripping coil designed for undervoltage trip coil release (MNx) applications. It belongs to the sub-range of tripping coils and is engineered for DIN rail mounting. This part operates with a control voltage of 230Vac AC.

0 in stock
XB7EV04MP on Powermatic Associates

XB7EV04MP

Schneider Electric

Schneider Electric XB7EV04MP is a monolithic pilot light designed for signaling applications, featuring an integral LED for illumination. This component, part of the XB7 sub-range, is constructed with a plastic body and has a round shape. It offers a rated impulse voltage (Uimp) of 6 kV and is protected to a degree of IP65, NEMA 4, and NEMA 12, ensuring its suitability for various industrial environments. The pilot light operates on a network frequency of 50/60 Hz and requires a supply voltage of 230 V AC. It has a diameter of 22 mm, with net dimensions of 29 mm in height, 54 mm in depth, and 29 mm in width. The light emitted by the LED is red, and it features screw-clamp type terminals for connection.

0 in stock
MG17416 on Powermatic Associates

MG17416

Schneider Electric

Schneider Electric MG17416 is a Miniature Circuit Breaker (MCB) designed as a supplementary protector within the C60 UL1077 sub-range. It features a rated current of 15A and operates on a single pole (1 Pole(s)) configuration. The rated operating voltage (Ue) for this MCB is 277 V. It offers a short circuit breaking rating of 10kA AIR at 240Vac, 5kA AIR at 277Vac, and 10kA AIR at 65Vdc, with protection extended to 1 Pole(s). The tripping curve for this device is classified as type C.

0 in stock
BDL36070 on Powermatic Associates

BDL36070

Schneider Electric

Square D by Schneider Electric BDL36070 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range, featuring a PowerPact B-Frame 100 TMD 3P 70A design for 600Y/347Vac with a 14kA breaking capacity and 80% rated Everlink (Creep compensating) lugs on both line and load sides. It has a rated impulse voltage (Uimp) of 8 kV and offers a degree of protection of IP40. The rated current is 70A, with a rated voltage (AC) of 600Vac 600Y/347Vac. It boasts a mechanical durability of 20,000 operations at no load and can be mounted on a DIN rail or as an individual unit on a plate. This 3-pole (3P) circuit breaker has dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. It falls under utilisation category A and features over-current protection fixed at 70A, short-circuit hold current fixed at 640A, and short-circuit trip current fixed at 960A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. It provides thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 70 AT and an electrical durability of 10,000 operations with load at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mechanism. The short circuit breaking rating varies by voltage, with 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, and 14kA at 600Y/347Vac according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

0 in stock
3100800401 on Powermatic Associates

3100800401

Schneider Electric

Flange Mounted Handle Gasket

1 in stock
60212 on Powermatic Associates

60212

Schneider Electric

MINIATURE CIRCUIT BREAKER 120V 15A

5 in stock

This item can ship within 24h!

Manufacturer warranty

QOU3605283 Schneider Electric

$354.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

2

Select Qty:

$354.00

$354.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare QOU3605283 with other Industrial Automation Components products

Circuit Breaker Type

Width

Line Rated Current

Mounting Mode

Tightening Torque

AWG Gauge

Product Or Component Type

Range Of Product

Height

Circuit Breaker Applicati...

Selected product

QOU3605283
2 in stock
QOU3605283
Schneider Electric

Schneider Electric - QOU3605283

Circuit Breaker TypeStandard

Width2.25 in (57.15 mm)

Line Rated Current60 A

Mounting ModeUnit mount

Tightening Torque45 lbf.in (5.08 N.m) (AWG 14...

AWG GaugeAWG 14...AWG 2 aluminium/cop...

Product Or Component TypeMiniature circuit-breaker

Range Of ProductQOU

Height4.05 in (102.87 mm)

Circuit Breaker ApplicationHACR and Switching Duty rate...

QOU3155283
7 in stock
QOU3155283
Schneider Electric

Square D by Schneider Electric QOU3155283 is a unit-mount Miniature Circuit Breaker (MCB) designed f...

Circuit Breaker TypeStandard

Width2.25 in (57.15 mm)

Line Rated Current15 A

Mounting ModeUnit mount

Tightening Torque-

AWG GaugeAWG 14...AWG 2 aluminium/cop...

Product Or Component TypeMiniature circuit-breaker

Range Of ProductQOU

Height4.05 in (102.87 mm)

Circuit Breaker ApplicationHACR and Switching Duty rate...

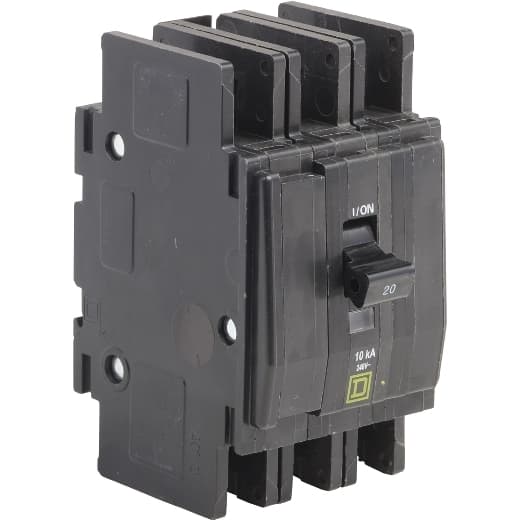

QOU3105283
