Part#:EX112T3HFNLP

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

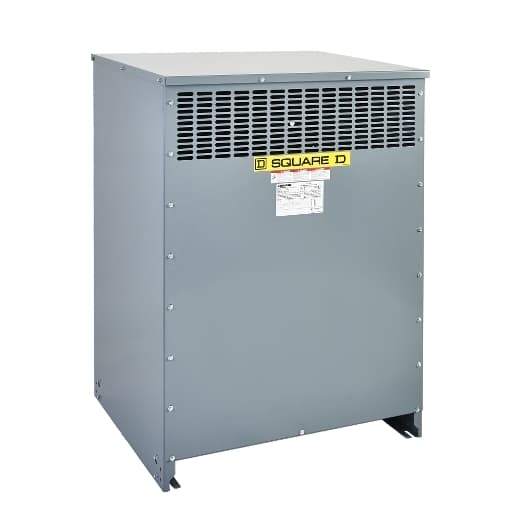

Schneider Electric - EX112T3HFNLP

Product Details

  • Rated Operational Power In VA
    112.5 kVA
  • X/R Ratio
    1.37
  • Device Short Name
    DOE 2016
  • Device Application
    Low voltage electrical distribution
  • Let Through Current
    9.3 kA
  • Range Of Product
    Square D
  • Type Of Cooling
    Natural convection
  • Basic IMP Level (BIL)
    10 kV
  • Product Or Component Type
    Transformer
  • Depth
    28.46 in (723 mm)
  • Network Frequency
    60 Hz
  • DOE Efficiency
    99.04 % at 35 % load factor , 167 °F (75.0 °C)
  • Net Weight
    1270.00 lb(US) (576.06 kg)
  • Phase
    3 phase
  • Primary Voltage
    480 V delta
  • Width
    33.66 in (855 mm)
  • Transformer Type
    Energy efficient
  • Secondary Voltage
    208Y/120 V
  • Height
    49.09 in (1247 mm)
  • Coil Material
    Aluminium
  • Temperature Rise
    115 °C 220 °C insulated
  • Sound Level
    47 dB 3 dB NEMA ST-20
  • Transformer Losses
    210.0 no load (core loss) 1628.0 load loss (coil loss)
  • Number Of Tap-Offs
    2 2.5 % FCAN 4 2.5 % FCBN
  • Degree Of Protection
    UL type 1 UL type 2, with 7400DS22K UL type 3R, with 7400WS22K
  • Mounting Support
    Floor Floor, with 7400FMB Ceiling, with 7400CMB22K
  • Electrical Connection
    4 Hole Nema Pad primary 0.44 in (11.1 mm) 4 Hole Nema Pad secondary 0.44 in (11.1 mm) 6 Hole Nema Pad sec - XO 0.44 in (11.1 mm)
  • Transformer BTU/HR
    869.5863052159999 16.6 % 1063.691 25 % 2105.204 50 % 3841.0589999999997 75 % 6271.255999999999 100 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
