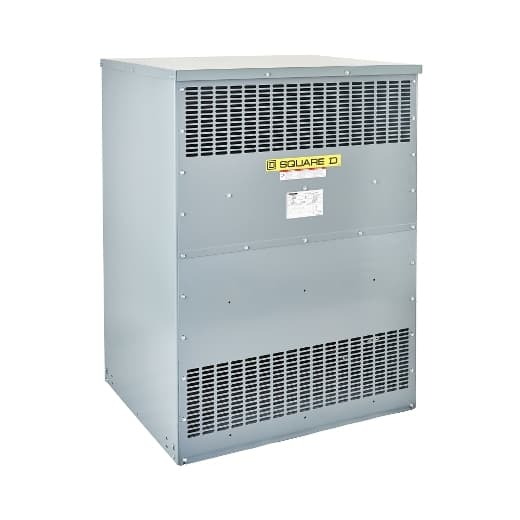

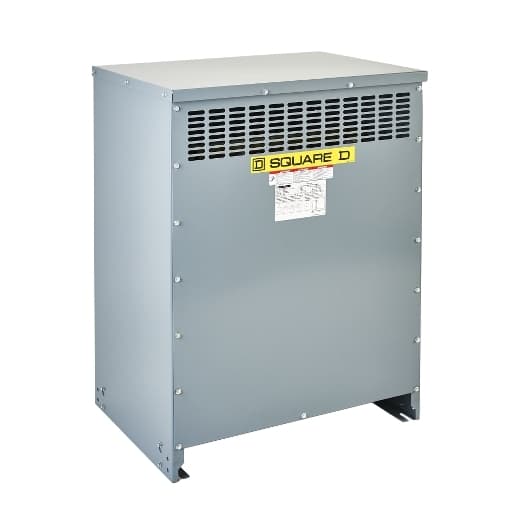

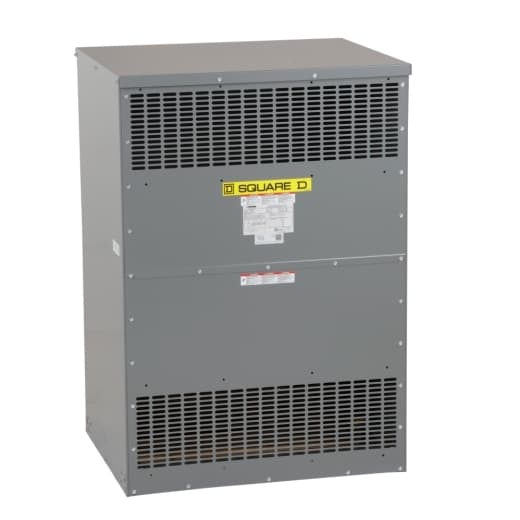

EX300T68HBCU Schneider Electric Industrial Automation Components

Product Details

• Device Short Name
  DOE 2016
• Coil Material
  Copper
• Network Frequency
  60 Hz
• Transformer Type
  Energy efficient
• Primary Voltage
  480 V delta
• Let Through Current
  29.3 kA
• %IX
  0.0279 %
• Net Weight
  3705.00 lb(US) (1680.56 kg)
• Box Number
  30J
• Basic IMP Level (BIL)
  10 kV
• Width
  48.27 in (1226 mm)
• Device Application
  Low voltage electrical distribution
• Product Or Component Type
  Transformer
• Phase
  3 phase
• %IZ
  2.8 %
• Rated Operational Power In VA
  300 kVA
• DOE Efficiency
  99.20 % at 35 % load factor , 167 °F (75.0 °C)
• Depth
  37.91 in (963 mm)
• Type Of Cooling
  Natural convection
• Range Of Product
  Square D
Height
70.98 in (1803 mm)
Secondary Voltage
208Y/120 V
X/R Ratio
5.34
Mounting Support
Floor Floor, with 7400FMB
Number Of Tap-Offs
2 2.5 % FCAN 2 2.5 % FCBN
Transformer Losses
667.0 no load (core loss) 1568.0 load loss (coil loss)
Temperature Rise
220 °C insulated 80 °C
Sound Level
55 dB 0 dB
Degree Of Protection
UL type 1 UL type 2, with 7400DS30J UL type 3R, with 7400WS30J
Electrical Connection
4 Hole Nema Pad primary 0.44 in (11.1 mm) 6 Hole Nema Pad secondary 0.44 in (11.1 mm) 8 Hole Nema Pad sec - XO 0.44 in (11.1 mm)
Transformer BTU/HR
2423.329890404736 16.6 % 2610.28863 25 % 3613.458378 50 % 5285.407958 75 % 7626.1373699999995 100 %
