Part#:EX30T3HFCUNLP

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

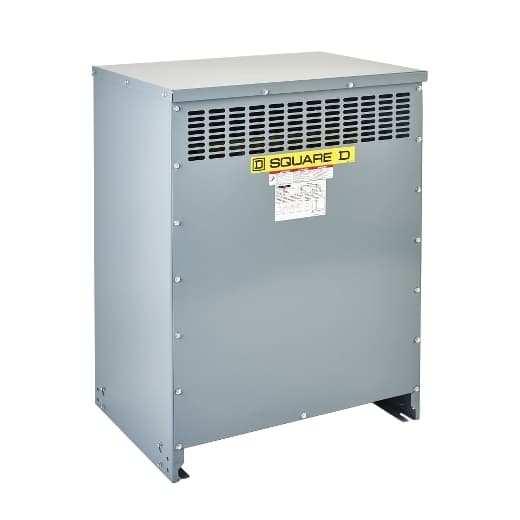

DOE 2016 LV XFMR, 3 Phase, K-13, 30kVA, 480 Delta-208Y/120, CU,

Product Details

  • Height
    35.31 in (897 mm)
  • Range Of Product
    Square D
  • Coil Material
    Copper
  • Device Application
    Low voltage electrical distribution
  • Depth
    20.98 in (533 mm)
  • Phase
    3 phase
  • DOE Efficiency
    98.56 % at 35 % load factor , 167 °F (75.0 °C)
  • Width
    25.51 in (648 mm)
  • Product Or Component Type
    Transformer
  • Secondary Voltage
    208Y/120 V
  • %IZ
    2.8 %
  • Net Weight
    495.00 lb(US) (224.53 kg)
  • Network Frequency
    60 Hz
  • Let Through Current
    2.9 kA
  • Device Short Name
    DOE 2016
  • Primary Voltage
    480 V delta
  • %IX
    0.0222 %
  • Type Of Cooling
    Natural convection
  • Transformer Type
    Energy efficient
  • Basic IMP Level (BIL)
    10 kV
  • Rated Operational Power In VA
    30 kVA
  • X/R Ratio
    1.26
  • Number Of Tap-Offs
    2 2.5 % FCAN 4 2.5 % FCBN
  • Temperature Rise
    115 °C 220 °C insulated
  • Transformer Losses
    96.0 no load (core loss) 529.0 load loss (coil loss)
  • Sound Level
    6 dB NEMA ST-20 39 dB
  • Degree Of Protection
    UL type 1 UL type 2, with 7400DS18K UL type 3R, with 7400WS18K
  • Electrical Connection
    2 Hole Nema Pad primary 0.44 in (11.1 mm) 2 Hole Nema Pad secondary 0.44 in (11.1 mm) 4 Hole Nema Pad sec - XO 0.44 in (11.1 mm)
  • Mounting Support
    Floor Floor, with 7400FMB Ceiling, with 7400CMB18K Wall, with 7400WMB18K20K
  • Transformer BTU/HR
    377.289147088 16.6 % 440.36125 0.25 % 778.789 0.5 % 1342.8352499999999 0.75 % 2132.5 1.0 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
