Part#:EX75T3HFNLP

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

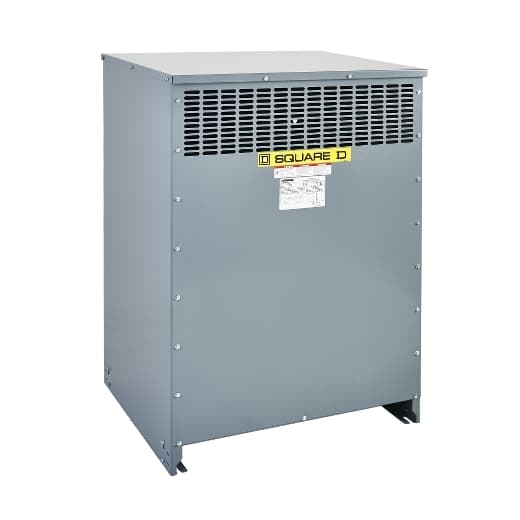

Schneider Electric - EX75T3HFNLP

Product Details

  • Transformer BTU/HR
    694.772949248 16.6 % 835.9399999999999 25 % 1593.404 50 % 2855.844 75 % 4623.26 100 %
  • Mounting Support
    Floor Floor, with 7400FMB Ceiling, with 7400CMB21K
  • Degree Of Protection
    UL type 1 UL type 2, with 7400DS21K UL type 3R, with 7400WS21K
  • Electrical Connection
    4 Hole Nema Pad primary 0.44 in (11.1 mm) 4 Hole Nema Pad secondary 0.44 in (11.1 mm) 6 Hole Nema Pad sec - XO 0.44 in (11.1 mm)
  • Sound Level
    47 dB 6 dB NEMA ST-20
  • Transformer Losses
    171.0 no load (core loss) 1184.0 load loss (coil loss)
  • Number Of Tap-Offs
    2 2.5 % FCAN 4 2.5 % FCBN
  • Temperature Rise
    115 °C 220 °C insulated
  • Net Weight
    1025.00 lb(US) (464.93 kg)
  • Width
    31.30 in (795 mm)
  • Depth
    24.02 in (610 mm)
  • Height
    45.98 in (1168 mm)
  • X/R Ratio
    1.45
  • Let Through Current
    7.4 kA
  • %IX
    0.023 %
  • %IZ
    0.028 %
  • DOE Efficiency
    98.88 % at 35 % load factor , 167 °F (75.0 °C)
  • Secondary Voltage
    208Y/120 V
  • Primary Voltage
    480 V delta
  • Basic IMP Level (BIL)
    10 kV
  • Coil Material
    Copper
  • Type Of Cooling
    Natural convection
  • Transformer Type
    Energy efficient
  • Range Of Product
    Square D
  • Rated Operational Power In VA
    75 kVA
  • Device Short Name
    DOE 2016
  • Network Frequency
    60 Hz
  • Phase
    3 phase
  • Device Application
    Low voltage electrical distribution
  • Product Or Component Type
    DOE 2016 energy efficient transformer

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
