Part#:EX75T3HFCUNLP

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

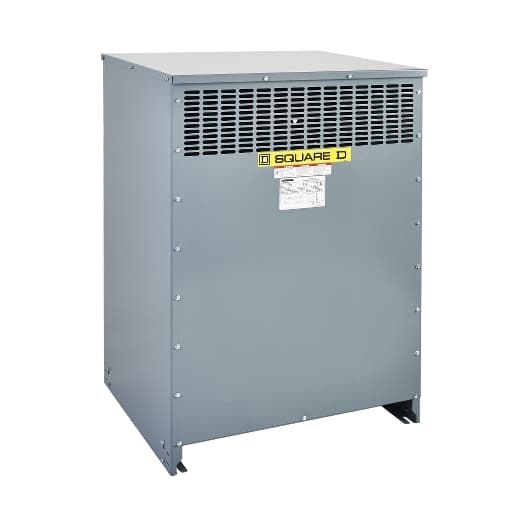

DOE 2016 LV XFMR, 3 Phase, K-13, 75kVA, 480 Delta-208Y/120, CU,

Product Details

  • Transformer Type
    Energy efficient
  • Coil Material
    Copper
  • Phase
    3 phase
  • X/R Ratio
    1.73
  • Net Weight
    1025.00 lb(US) (464.93 kg)
  • Primary Voltage
    480 V delta
  • DOE Efficiency
    98.96 % at 35 % load factor , 167 °F (75.0 °C)
  • Rated Operational Power In VA
    75 kVA
  • Basic IMP Level (BIL)
    10 kV
  • Range Of Product
    Square D
  • Product Or Component Type
    DOE 2016 energy efficient transformer
  • Let Through Current
    7.6 kA
  • Network Frequency
    60 Hz
  • %IX
    0.0235 %
  • Depth
    24.02 in (610 mm)
  • Width
    31.30 in (795 mm)
  • Device Short Name
    DOE 2016
  • Secondary Voltage
    208Y/120 V
  • %IZ
    0.027 %
  • Type Of Cooling
    Natural convection
  • Height
    45.98 in (1168 mm)
  • Device Application
    Low voltage electrical distribution
  • Temperature Rise
    115 °C 220 °C insulated
  • Sound Level
    47 dB 6 dB NEMA ST-20
  • Transformer Losses
    167.0 no load (core loss) 1024.0 load loss (coil loss)
  • Number Of Tap-Offs
    2 2.5 % FCAN 4 2.5 % FCBN
  • Degree Of Protection
    UL type 1 UL type 2, with 7400DS21K UL type 3R, with 7400WS21K
  • Mounting Support
    Floor Floor, with 7400FMB Ceiling, with 7400CMB21K
  • Electrical Connection
    4 Hole Nema Pad primary 0.44 in (11.1 mm) 4 Hole Nema Pad secondary 0.44 in (11.1 mm) 6 Hole Nema Pad sec - XO 0.44 in (11.1 mm)
  • Transformer BTU/HR
    666.081577728 16.6 % 788.172 25 % 1443.276 50 % 2535.116 75 % 4063.692 100 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EX75T3HFCUNLP on Powermatic Associates is $15,899.00. Order now.
