EZM11200GCBE Schneider Electric Industrial Automation Components

EZM11200GCBE on Powermatic Associates
Schneider Electric

Part#:EZM11200GCBE

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

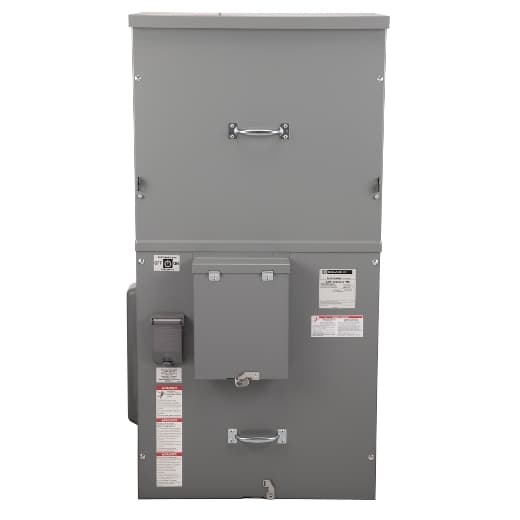

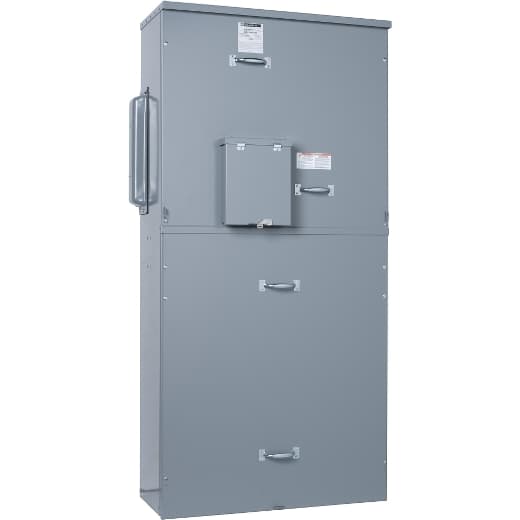

Square D by Schneider Electric EZM11200GCBE is a meter center main unit designed for surface mounting. It features a galvanized steel enclosure and an aluminium busbar, ensuring compatibility with indoor and rainproof environments as indicated by its NEMA 3R protection degree. This unit measures H1681mm x W823mm x D348mm (H66.2" x W32.39" x D13.69") and operates at a rated voltage of 120Vac/240Vac. It is designed for a single-phase (1PH-3W) network and supports a rated current of 1200A for both the main unit and the busbar. The EZM11200GCBE accommodates a cross-section of 1 x 6AWG to 300kcmil aluminium/copper lugs for grounding purposes.

Product Details

  • Main Rated Current
    1200 A
  • Wiring Configuration
    3-wire
  • Bus Rated Current
    1200 A
  • Main Type
    Main Circuit Breaker
  • Material
    Aluminium busbar
  • Range Of Product
    EZ meter-pak
  • Product Or Component Type
    Meter center main unit
  • [Ue] Rated Operational Voltage
    120/240 V AC
  • Device Mounting
    Surface
  • Enclosure Material
    Galvanized Steel
  • Service Feed Location
    UG
  • Height
    66.20 in (1681.48 mm)
  • Depth
    13.69 in (347.73 mm)
  • Width
    32.39 in (822.71 mm)
  • Number Of Phases
    1 phase in 1 phase out
  • Included Items
    Closing plate Circuit-breaker2P 1200 A 65 kA
  • Electrical Connection
    Lugs 1 AWG 6...300 kcmil aluminium/copper) ground Studs 3line Studs 3neutral

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZM11200GCBE on Powermatic Associates is $18,550.00. Order now.

EZM11200GCBE Related Documents

Catalog-1631034610426.pdfProduct Datasheet-1631034610424.pdf

Similar products from: Schneider Electric Industrial Automation Components

M9A26969 on Powermatic Associates

M9A26969

Schneider Electric

Schneider Electric M9A26969 is a tripping coil designed for undervoltage trip coil release (MNx) applications. It belongs to the sub-range of tripping coils and is engineered for DIN rail mounting. This part operates with a control voltage of 230Vac AC.

0 in stock
XB7EV04MP on Powermatic Associates

XB7EV04MP

Schneider Electric

Schneider Electric XB7EV04MP is a monolithic pilot light designed for signaling applications, featuring an integral LED for illumination. This component, part of the XB7 sub-range, is constructed with a plastic body and has a round shape. It offers a rated impulse voltage (Uimp) of 6 kV and is protected to a degree of IP65, NEMA 4, and NEMA 12, ensuring its suitability for various industrial environments. The pilot light operates on a network frequency of 50/60 Hz and requires a supply voltage of 230 V AC. It has a diameter of 22 mm, with net dimensions of 29 mm in height, 54 mm in depth, and 29 mm in width. The light emitted by the LED is red, and it features screw-clamp type terminals for connection.

0 in stock
MG17416 on Powermatic Associates

MG17416

Schneider Electric

Schneider Electric MG17416 is a Miniature Circuit Breaker (MCB) designed as a supplementary protector within the C60 UL1077 sub-range. It features a rated current of 15A and operates on a single pole (1 Pole(s)) configuration. The rated operating voltage (Ue) for this MCB is 277 V. It offers a short circuit breaking rating of 10kA AIR at 240Vac, 5kA AIR at 277Vac, and 10kA AIR at 65Vdc, with protection extended to 1 Pole(s). The tripping curve for this device is classified as type C.

0 in stock
BDL36070 on Powermatic Associates

BDL36070

Schneider Electric

Square D by Schneider Electric BDL36070 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT BDL sub-range, featuring a PowerPact B-Frame 100 TMD 3P 70A design for 600Y/347Vac with a 14kA breaking capacity and 80% rated Everlink (Creep compensating) lugs on both line and load sides. It has a rated impulse voltage (Uimp) of 8 kV and offers a degree of protection of IP40. The rated current is 70A, with a rated voltage (AC) of 600Vac 600Y/347Vac. It boasts a mechanical durability of 20,000 operations at no load and can be mounted on a DIN rail or as an individual unit on a plate. This 3-pole (3P) circuit breaker has dimensions of 137 mm in height, 80 mm in depth, and 81 mm in width. It falls under utilisation category A and features over-current protection fixed at 70A, short-circuit hold current fixed at 640A, and short-circuit trip current fixed at 960A. The rated voltage (DC) is 250Vdc, with a rated insulation voltage (Ui) of 800 V and a rated operating voltage (Ue) of 525 V. It provides thermal protection for overload and magnetic protection for short-circuits, with a trip current rating of 70 AT and an electrical durability of 10,000 operations with load at 440Vac. The frame current rating is 100 AF, and it operates via a toggle (manual) mechanism. The short circuit breaking rating varies by voltage, with 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, and 14kA at 600Y/347Vac according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display.

0 in stock
NSYTRACRE24 on Powermatic Associates

NSYTRACRE24

Schneider Electric

Schneider Electric - NSYTRACRE24

30 in stock
M9F53315 on Powermatic Associates

M9F53315

Schneider Electric

Schneider Electric M9F53315 is a Miniature Circuit Breaker (MCB) within the C60BPR sub-range, designed to comply with UL489 standards. This 3-pole MCB has a rated current of 15A and features a rated insulation voltage (Ui) of 500V, with a rated impulse voltage (Uimp) of 6kV. It offers a short circuit breaking rating of 14kA AIR at both 120Vac and 240Vac, and 10kA AIR at 480Y/277Vac and 125Vdc. The rated voltage (AC) for phase-to-phase is 440V. All three poles are protected, and it operates with a D tripping curve.

3 in stock

Manufacturer warranty

EZM11200GCBE Schneider Electric

$18,550.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$18,550.00

$18,550.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare EZM11200GCBE with other Industrial Automation Components products

Main Rated Current

Wiring Configuration

Bus Rated Current

Main Type

Material

Range Of Product

Product Or Component Type

[Ue] Rated Operational Vo...

Device Mounting

Enclosure Material

Selected product

EZM11200GCBE
Backordered
EZM11200GCBE
Schneider Electric

Square D by Schneider Electric EZM11200GCBE is a meter center main unit designed for surface mountin...

Main Rated Current1200 A

Wiring Configuration3-wire

Bus Rated Current1200 A

Main TypeMain Circuit Breaker

MaterialAluminium busbar

Range Of ProductEZ meter-pak

Product Or Component TypeMeter center main unit

[Ue] Rated Operational Voltage120/240 V AC

Device MountingSurface

Enclosure MaterialGalvanized Steel

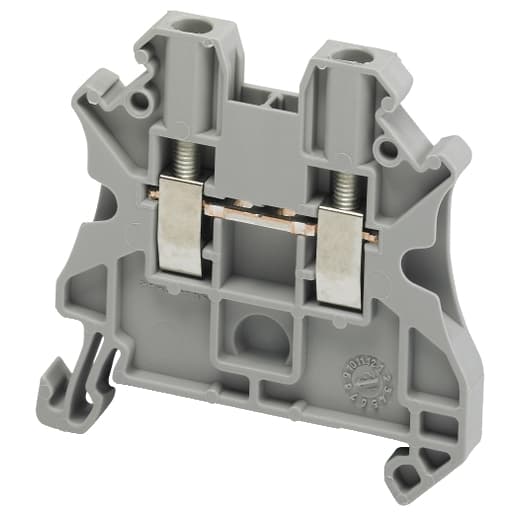

NSYTRV44
100 in stock
NSYTRV44
Schneider Electric

Schneider Electric - NSYTRV44

Main Rated Current-

Wiring Configuration-

Bus Rated Current-

Main Type-

MaterialPolyamide 6/6 insulating cas...

Range Of Product-

Product Or Component TypeTerminal block

[Ue] Rated Operational Voltage500 V EN/IEC 60947-7-1 352 V...

Device Mounting-

Enclosure Material-

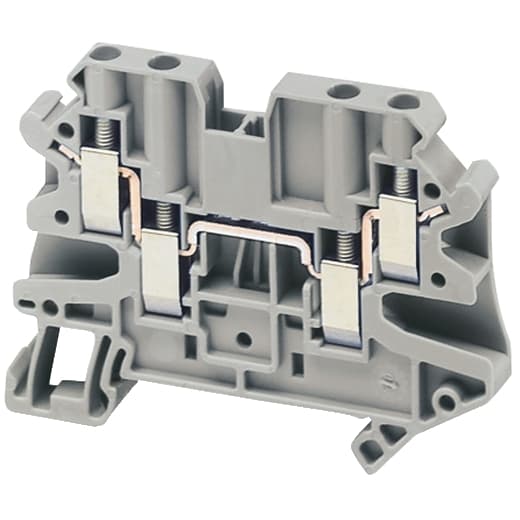

NSYTRV22
40 in stock
NSYTRV22
Schneider Electric

Schneider Electric - NSYTRV22

Main Rated Current-

Wiring Configuration-

Bus Rated Current-

Main Type-

MaterialPolyamide 6/6 insulating cas...

Range Of Product-

Product Or Component TypeTerminal block

[Ue] Rated Operational Voltage1000 V EN/IEC 60947-7-1 600 ...

Device Mounting-

Enclosure Material-

About the manufacturer

Schneider Electric

Powermatic Associates is an authorized Schneider Electric distributor, proudly offering a diverse portfolio of innovative solutions tailored to meet the dynamic needs of today's industrial landscape. Schneider Electric stands as a global leader in energy management and automation, providing cutting-edge products and services that drive efficiency and sustainability across a variety of sectors. The...

Recently viewed products

ATV340D11N4E on Powermatic Associates

ATV340D11N4E

Schneider Electric

Schneider Electric ATV340D11N4E is a Variable Speed/Frequency Drive (VSD/VFD) / Inverter from the Altivar Machine 340 series. It features Safe Torque Off up to SIL3 / PLe with dual input, 5 points U/F, sensorless voltage vector control, current vector control with sensor, and Master/Slave daisy chain through PTO/PTI for MachineStruxure integration in SoMachine. It operates in velocity mode and torque control, offering 220% Tn in open or closed loop control, dynamic motor control performance (up to 400Hz speed bandwidth), and cyclic application task (1ms) with an energy-saving mode. The design includes a built-in EMC filter (class C3) and a built-in heatsink. It operates on a supply voltage of 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nom.), with dimensions of H385mm x W180mm x D249mm and an IP20 degree of protection. The rated current is 32A (normal-duty; 4kHz), 24A (heavy-duty; 4kHz), with a maximum current of 43A (normal-duty; for 2s), 43A (heavy-duty; for 2s), and 35.2A (normal-duty; for 60s), 36A (heavy-duty; for 60s). It supports cabinet mounting, Ethernet/IP, Modbus TCP communication protocols, operates on a 3-phase network with an output frequency of 1-599 Hz, and includes 1 x analog output, 5 x digital inputs, 2 x digital outputs programmable as inputs or outputs, 1 x digital output (C/O SPDT relay contact), 1 x digital output (NO relay contact), and 2 x analog inputs. The current consumption is 34A (380Vac; normal-duty), 27.3A (480Vac; normal-duty), 34.7A (380Vac; heavy-duty), 27.7A (480Vac; heavy-duty), with a rated active power of 15kW (normal-duty), 11kW (heavy-duty), and rated power of 20HP (normal-duty), 15HP (heavy-duty).

0 in stock

Relevant products

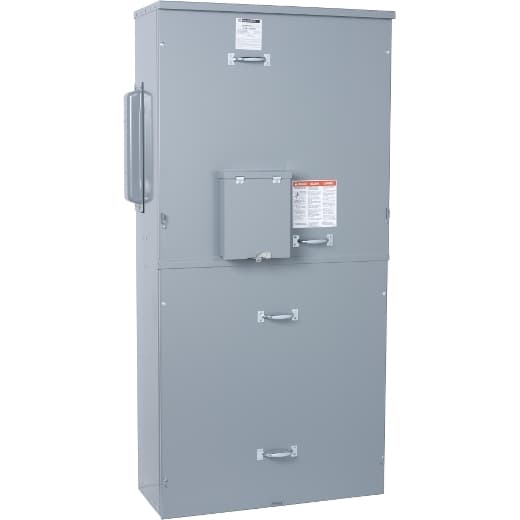

EZM11200GCBTMS on Powermatic Associates
