EZM11200GCBUMS Schneider Electric Industrial Automation Components

EZM11200GCBUMS on Powermatic Associates
Schneider Electric

Part#:EZM11200GCBUMS

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

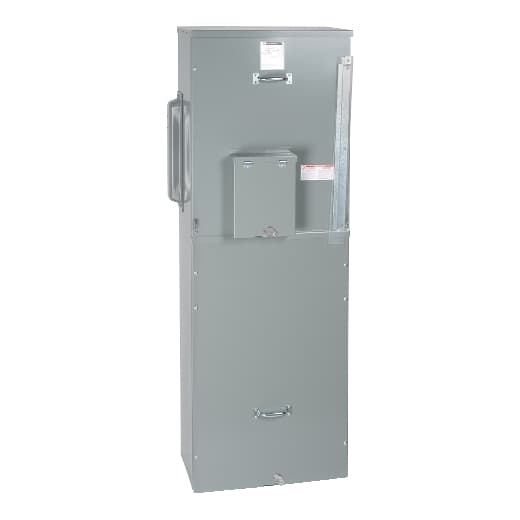

Square D by Schneider Electric EZM11200GCBUMS is a meter center main unit designed for wall mounting. It features a steel enclosure and aluminium busbar, ensuring compatibility with indoor and rainproof environments as indicated by its NEMA 3R protection degree. The dimensions of this unit are H1659mm x W602mm x D346mm (H65.31" x W23.7" x D13.62"). It operates at a rated voltage of 120Vac/240Vac and supports a single-phase (1PH-3W) network. The EZM11200GCBUMS is pre-equipped with an incoming breaker and an Energy Reduction Maintenance Switch (ERMS), facilitating its main function as an indoor/rainproof metering center main unit. It has a rated current of 1200A for both the main and busbar. For connections, it accommodates 1 x 6AWG to 300kcmil aluminium/copper lugs for ground and 4 x 3/0AWG to 500kcmil aluminium/copper lugs for phase and neutral.

Product Details

  • Product Or Component Type
    Meter center main unit
  • Wiring Configuration
    3-wire
  • Device Mounting
    Wall mounted
  • Bus Rated Current
    1200 A
  • Main Type
    Main Circuit Breaker
  • Width
    23.70 in (601.98 mm)
  • [Ue] Rated Operational Voltage
    120/240 V AC
  • Height
    65.31 in (1658.87 mm)
  • Range Of Product
    EZ meter-pak
  • Enclosure Material
    Steel
  • Material
    Aluminium busbar
  • Depth
    13.62 in (345.95 mm)
  • Main Rated Current
    1200 A
  • Service Feed Location
    UG
  • Electrical Connection
    Lugs 1 AWG 6...300 kcmil aluminium/copper) ground Lugs 4 AWG 3/0...500 kcmil aluminium/copper) phase and neutral
  • Number Of Phases
    1 phase in 1 phase out
  • Included Items
    Circuit-breaker 1) 2P 1200 A 65 kA main supply, ready assembled Closing plate

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZM11200GCBUMS on Powermatic Associates is $32,146.20. Order now.
