EZM31000GCBA40 Schneider Electric Industrial Automation Components

EZM31000GCBA40 on Powermatic Associates
Schneider Electric

Part#:EZM31000GCBA40

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

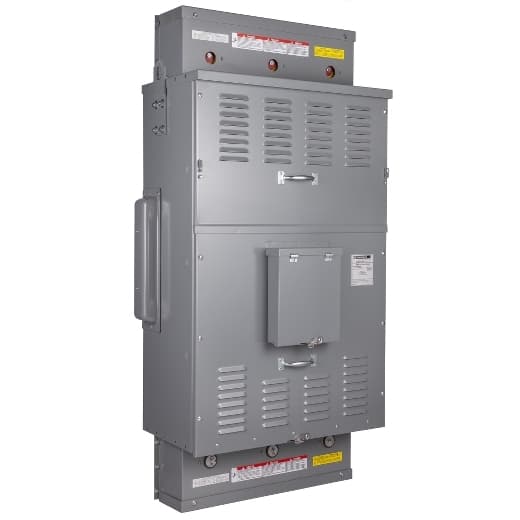

Square D by Schneider Electric EZM31000GCBA40 is a meter center main unit designed for wall mounting. It features a steel enclosure and an aluminium busbar, ensuring durability and conductivity. This unit is protected to a NEMA 3R degree, making it suitable for both indoor and rainproof applications. With dimensions of H1094mm x W710mm x D375mm (H43.07" x W27.95" x D14.76"), it supports a rated voltage of 208Y/120Vac and 240/120Vac (Delta) for versatile application in different electrical systems. The EZM31000GCBA40 is a three-phase (3PH-4W) indoor/rainproof metering center main unit, pre-equipped with an incoming breaker and a center tap busway for efficient power distribution. It utilizes an I-Line connection and is rated for a main current of 1000A and a busbar current of 4000A, accommodating substantial electrical loads.

Product Details

  • Included Items
    Circuit-breaker 1) 3P 1000 A 65 kA main supply, ready assembled
  • Wiring Configuration
    4-wire
  • Material
    Aluminium busbar
  • Service Feed Location
    OH
  • Device Mounting
    Wall mounted
  • Product Or Component Type
    Meter centre busway centre tap main unit
  • Main Type
    Main Circuit Breaker
  • Height
    43.07 in (1093.98 mm)
  • Main Rated Current
    1000 A
  • Electrical Connection
    I-Line connection
  • Enclosure Material
    Steel
  • Range Of Product
    EZ meter-pak
  • Depth
    14.76 in (374.90 mm)
  • Bus Rated Current
    4000 A
  • Width
    27.95 in (709.93 mm)
  • Number Of Phases
    3 phase in 3 phase out
  • [Ue] Rated Operational Voltage
    208Y/120 V AC 240/120 V delta AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZM31000GCBA40 on Powermatic Associates is $69,967.50. Order now.
