Powermatic Associates Logo

EZM31200GCBEMS Schneider Electric Industrial Automation Components

EZM31200GCBEMS on Powermatic Associates
Schneider Electric

Part#:EZM31200GCBEMS

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

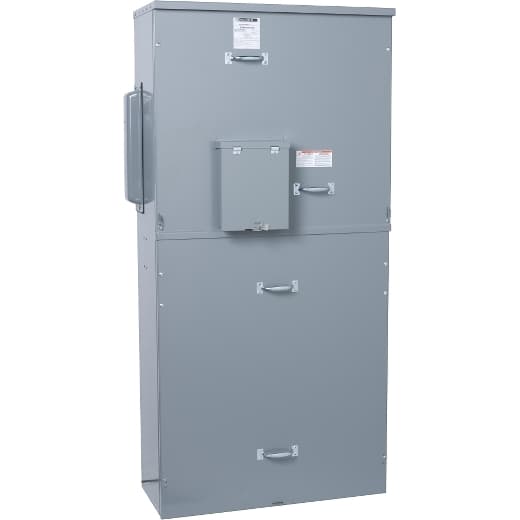

Square D by Schneider Electric EZM31200GCBEMS is a meter center main unit designed for wall mounting. It features an enclosure made from powder-coated and galvannealed steel, with a copper busbar. This unit offers a degree of protection rated at NEMA 3R, making it suitable for both indoor and rainproof applications. The dimensions of the unit are H1683mm x W823mm x D348mm (H66.27" x W32.39" x D13.7"). It operates at a rated voltage of 208Y/120Vac and 240/120Vac (Delta) and is designed for a three-phase (3PH-4W) network. The EZM31200GCBEMS is pre-equipped with an incoming breaker and an Energy Reduction Maintenance Switch (ERMS). It supports a busbar connection with a rated current of 1200A for both the main and busbar. The unit accommodates a cross-section of 1 x 6AWG to 300kcmil aluminium/copper lugs for the ground connection.

Product Details

  • Bus Rated Current
    1200 A
  • Device Mounting
    Wall mounted
  • Depth
    13.70 in (347.98 mm)
  • Material
    Copper busbar
  • Height
    66.27 in (1683.26 mm)
  • Range Of Product
    EZ meter-pak
  • Wiring Configuration
    4-wire
  • Main Type
    Main Circuit Breaker
  • Product Or Component Type
    Meter center main unit
  • Main Rated Current
    1200 A
  • Type Of Installation
    Indoor/outdoor
  • Service Feed Location
    UG
  • Width
    32.39 in (822.71 mm)
  • Enclosure Material
    Galvannealed steel Powder Coated Steel
  • Included Items
    Closing plate Circuit breaker3P 1200 A 65 kA main supply, ready assembled
  • Electrical Connection
    Lugs 1 AWG 6...300 kcmil aluminium/copper) ground Busbar connection
  • Number Of Phases
    3 phase in 3 phase out
  • [Ue] Rated Operational Voltage
    120/240 V AC 208Y/120 V AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZM31200GCBEMS on Powermatic Associates is $38,244.80. Order now.
