H362DSWA Schneider Electric Industrial Automation Components

H362DSWA on Powermatic Associates
Schneider Electric

Part#:H362DSWA

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

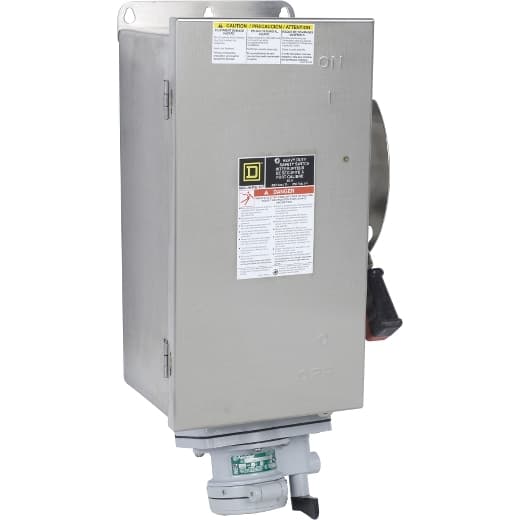

Schneider Electric - H362DSWA

Product Details

  • For Use With
    Plug ACP6034BC Appleton Powertite
  • Electrical Connection
    Receptacle
  • Product
    Receptacle Switch
  • Height
    16.87 in (428.50 mm)
  • Phase
    3 phase
  • Wire Configuration
    4-wire
  • Current Rating
    60 A
  • Depth
    5.11 in (129.79 mm)
  • Number Of Poles
    3
  • Width
    10.81 in (274.57 mm)
  • Mounting Type
    Surface
  • Enclosure Rating NEMA 3R
    NEMA 4/4X/5 stainless steel 304
  • Disconnect Type
    Fusible disconnect switch
  • Voltage Rating
    600 V AC 250 V DC
  • Wire Size
    AWG 12...AWG 2 aluminium AWG 14...AWG 2 copper
  • Tightening Torque
    45 lbf.in (5.08 N.m) (AWG 6...AWG 4) 40 lbf.in (4.52 N.m) (AWG 8) 35 lbf.in (3.95 N.m) (AWG 14...AWG 10)
  • Maximum Horse Power Rating
    15 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 240.6 30 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 15 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 240.6 50 hp 600 V at AC 50-60 Hz for 3 phase conforming

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of H362DSWA on Powermatic Associates is $4,668.00. Order now.
