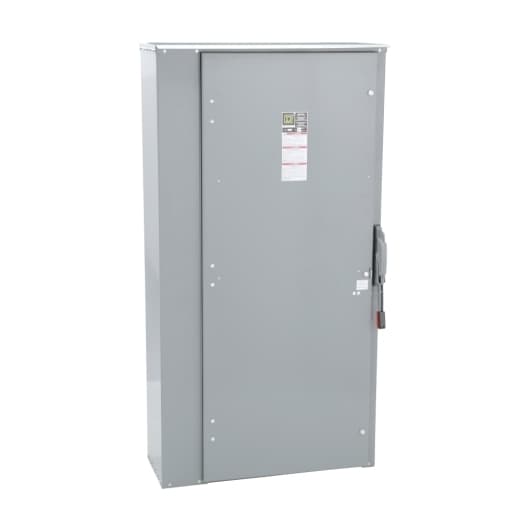

H367NR Schneider Electric Industrial Automation Components

Product Details

• Current Rating
  800 A
• Net Weight
  382.94 lb(US) (173.7 kg)
• Factory Installed Neutral
  Neutral (factory installed)
• Enclosure Rating
  NEMA 3R galvannealed steel
• Wire Size
  AWG 3/0...750 kcmil copper or aluminium
• Fuse Type
  L
• Device Application
  Heavy application
• Voltage Rating
  600 V AC/DC
• Width
  36.62 in (930.15 mm)
• Phase
  3 phase
• Mounting Type
  Surface
• Tightening Torque
  375 lbf.in (42.37 N.m) 0.13…0.59 in² (85.01…380 mm²) (AWG 3/0...750 kcmil)
• Product
  Single Throw Safety Switch
• Duty Rating
  Heavy duty
• Electrical Connection
  Lugs
• Number Of Poles
  3
• Wiring Configuration
  4-wire (3PH + N)
• Depth
  17.75 in (450.85 mm)
• Short Circuit Current Rating
  200 kA maximum L
• Height
  69.13 in (1755.90 mm)
Disconnect Type
Fusible disconnect
Maximum Horse Power Rating
200 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 240.6 500 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 250 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 240.6 500 hp 600 V at AC 50-60 Hz for 3 phase conform
