H368R Schneider Electric Industrial Automation Components
Part#:H368R
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

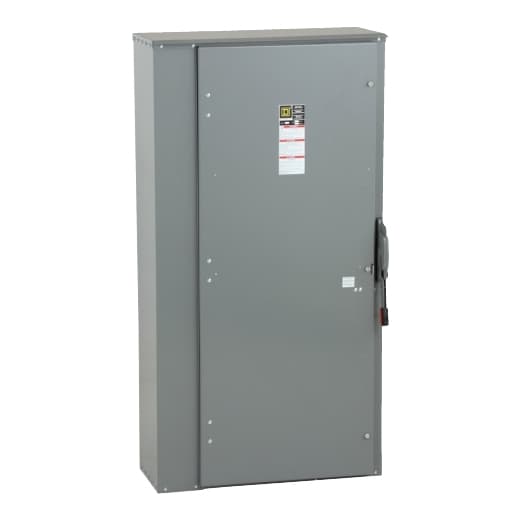

Schneider Electric H368R is a switch-disconnector that falls under the sub-range of heavy-duty safety switches. This particular model is designed as a heavy-duty single throw safety switch with a fused mechanism. It features 3 poles and is rated for a current of 1200 A. The dimensions of the H368R include a net height of 1756 mm, a net width of 930 mm, and a net depth of 451 mm. It operates via a toggle mode. The switch-disconnector has a short circuit breaking rating of 10kA maximum with fuse types H or K and can reach up to 200kA maximum with fuse types R, J, or L. The terminals are of the lug type, and the rated voltage for phase-to-phase connections is 600 V.
Product Details
- Product Single Throw Safety Switch
- Enclosure Rating NEMA 3R galvannealed steel
- Height 69.13 in (1755.90 mm)
- Current Rating 1200 A
- Tightening Torque 375 lbf.in (42.37 N.m) 0.13…0.59 in² (85.01…380 mm²) (AWG 3/0...750 kcmil)
- Net Weight 373.02 lb(US) (169.2 kg)
- Mounting Type Surface
- Phase 3 phase
- Voltage Rating 600 V AC/DC
- Wire Size AWG 3/0...750 kcmil copper or aluminium
- Wiring Configuration 4-wire (3PH + N)
- Disconnect Type Fusible disconnect
- Number Of Poles 3
- Factory Installed Neutral None
- Short Circuit Current Rating 200 kA maximum L
- Device Application Heavy application
- Depth 17.75 in (450.85 mm)
- Fuse Type L
- Width 36.62 in (930.15 mm)
- Duty Rating Heavy duty
- Electrical Connection Lugs
- Maximum Horse Power Rating 200 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 240.6 500 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 250 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 240.6 500 hp 600 V at AC 50-60 Hz for 3 phase conform
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of H368R on Powermatic Associates is $20,009.00. Order now.
