Part#:HDA36060

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

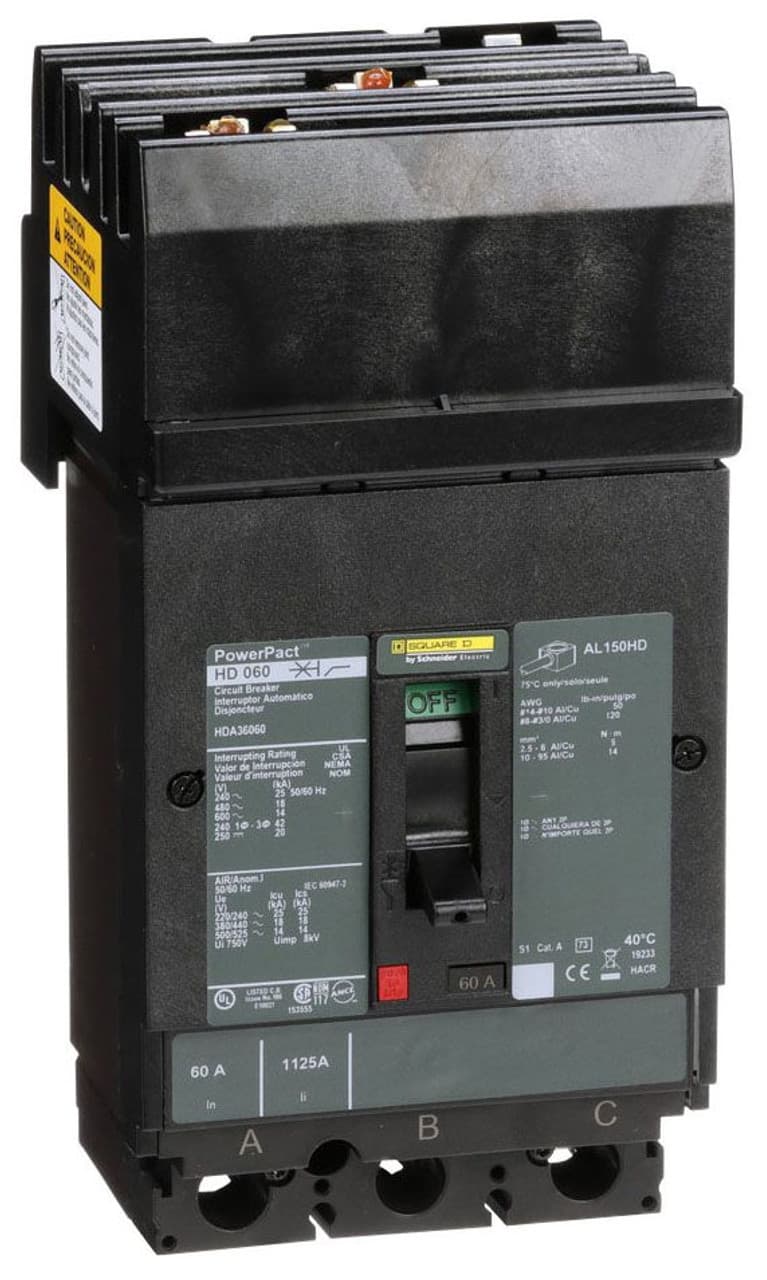

Square D by Schneider Electric HDA36060 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HDA sub-range, featuring a PowerPact H-Frame 150 TMD design. It is a 3-pole (3P) device with a rated current of 60A and offers both thermal protection (overload) and magnetic protection (short-circuit). This MCCB has an I-line connection for ABC phases and is designed for mounting on I-line with line side isolated plug-on jaws plus a mechanical I-Line bracket mechanism. It has a rated insulation voltage (Ui) of 750 V, rated voltages of 600Vac 600Y/347Vac for AC and 250Vdc for DC, and a degree of protection of IP40. The operating mode is manual toggle, with over-current protection settings fixed at 60A and short-circuit protection settings fixed at 800A for hold current and 1450A for trip current. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. Its dimensions are 163 mm in height, 104 mm in width, and 86 mm in depth. The trip current rating is 60 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, 14kA at 600Vac and 600Y/347Vac for UL489, and 20kA at 250Vdc for UL489. The trip unit type is thermal-magnetic (fixed) without a display, and it falls under utilisation category A.

Product Details

  • Shipping Length:
    15.00 In.
  • UPC:
    78590141996
  • Shipping Height:
    6.00 In.
  • Shipping Weight:
    5.56 lbs.
  • TS PIK:
    125439250
  • Shipping Width:
    9.00 In.
  • Electrical Connection
    I-Line connection line Lugs load
  • Phase Connection
    ABC
  • Continuous Current Rating
    80 %
  • Width
    4.48 in (113.79 mm)
  • Depth
    4.8 in (121.92 mm)
  • Height
    9.73 in (247.14 mm)
  • Number Of Poles
    3P
  • Magnetic Hold Current
    800 A
  • Magnetic Tripping Current
    1450 A
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Mounting Mode
    I-Line
  • Breaking Capacity Code
    D
  • Product Or Component Type
    Circuit breaker
  • Line Rated Current
    60 A
  • Range Of Product
    PowerPact H

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HDA36060 on Powermatic Associates is $1,124.00. Order now.
