HDL26030C Schneider Electric Industrial Automation Components

HDL26030C on Powermatic Associates
Schneider Electric

Part#:HDL26030C

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

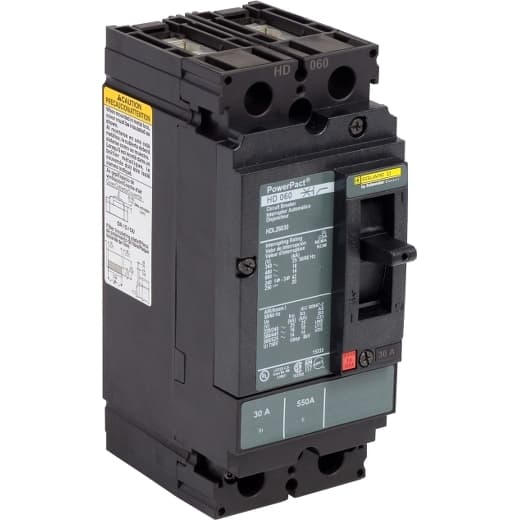

Square D by Schneider Electric HDL26030C is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HDL sub-range, designed with a PowerPact H-Frame 150 TMD 2P 30A 600Vac/250Vdc 14kA with lugs 100% rated for connections on both load and line sides. It features 2 poles (2P) and offers protection functions including thermal protection for overload and magnetic protection for short-circuit scenarios. The rated current is 30A, with a rated insulation voltage (Ui) of 750 V, and it operates at a rated voltage (AC) of 600Vac 600Y/347Vac. This unit is designed for individual unit mount on plate, with a net height of 163 mm, a net width of 104 mm, and a net depth of 86 mm. It provides a degree of protection of IP40 and operates via a toggle (manual) mode. Protection settings are fixed, with over-current protection at 30A, short-circuit hold current at 350A, and short-circuit trip current at 750A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 30 AT, and it has a frame current rating of 150 AF. Its short circuit breaking rating varies with voltage, including 25kA at 240Vac, 18kA at 480Vac and 480Y/277Vac, 14kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all in accordance with UL489. The trip unit type is thermal-magnetic (fixed) without a display, and it falls under utilisation category A.

Product Details

  • Number Of Poles
    2P
  • Width
    2.74 in (69.60 mm)
  • Product Or Component Type
    Circuit breaker
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Magnetic Hold Current
    350 A
  • Mounting Mode
    Unit mount
  • Range Of Product
    PowerPact H
  • Breaking Capacity Code
    D
  • Depth
    4.36 in (110.74 mm)
  • Line Rated Current
    30 A
  • Height
    6.4 in (162.56 mm)
  • Magnetic Tripping Current
    750 A
  • Continuous Current Rating
    100 %
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HDL26030C on Powermatic Associates is $1,044.00. Order now.
