HGL36100T Schneider Electric Industrial Automation Components

HGL36100T on Powermatic Associates
Schneider Electric

Part#:HGL36100T

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

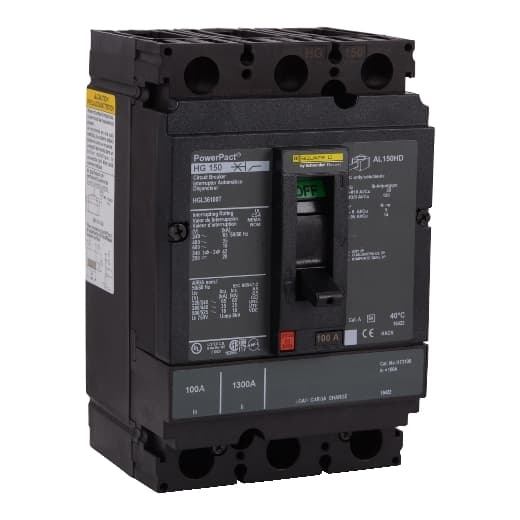

Square D by Schneider Electric HGL36100T is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGL sub-range, featuring a removable/interchangeable trip unit PowerPacT H-Frame 150 TMD 3P 100A. It is designed for 600Vac/500Vdc with a rated current of 100A and offers thermal protection (overload) and magnetic protection (short-circuit). This 3-pole circuit breaker has lugs on both load and line sides for connection, a rated insulation voltage (Ui) of 750 V, and operates with a toggle (manual) mechanism. It is designed for individual unit mount on plate, with a net height of 163 mm, width of 104 mm, and depth of 86 mm. The degree of protection is IP40. Its protection settings include over-current fixed at 100A, short-circuit hold current fixed at 900A, and short-circuit trip current fixed at 1700A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 100 AT, and the frame current rating is 150 AF. It has a short circuit breaking rating of up to 65kA at 240Vac, 35kA at 480Vac, 18kA at 600Vac, and 20kA at 500Vdc, according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display, and it falls under utilisation category A.

Product Details

  • Mounting Mode
    Unit mount
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Number Of Poles
    3P
  • Depth
    4.36 in (110.74 mm)
  • Continuous Current Rating
    80 %
  • Magnetic Tripping Current
    1700 A
  • Breaking Capacity Code
    G
  • Product Or Component Type
    Circuit breaker
  • Height
    6.4 in (162.56 mm)
  • Range Of Product
    PowerPact H
  • Magnetic Hold Current
    900 A
  • Line Rated Current
    100 A
  • Width
    4.12 in (104.65 mm)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HGL36100T on Powermatic Associates is $2,551.50. Order now.
