HJA36060 Schneider Electric Industrial Automation Components

What is the price of HJA36060?
Purchase the HJA36060 from Powermatic Associates at the price of $1,988.00. Order today.

Out if stock but available for backorder.

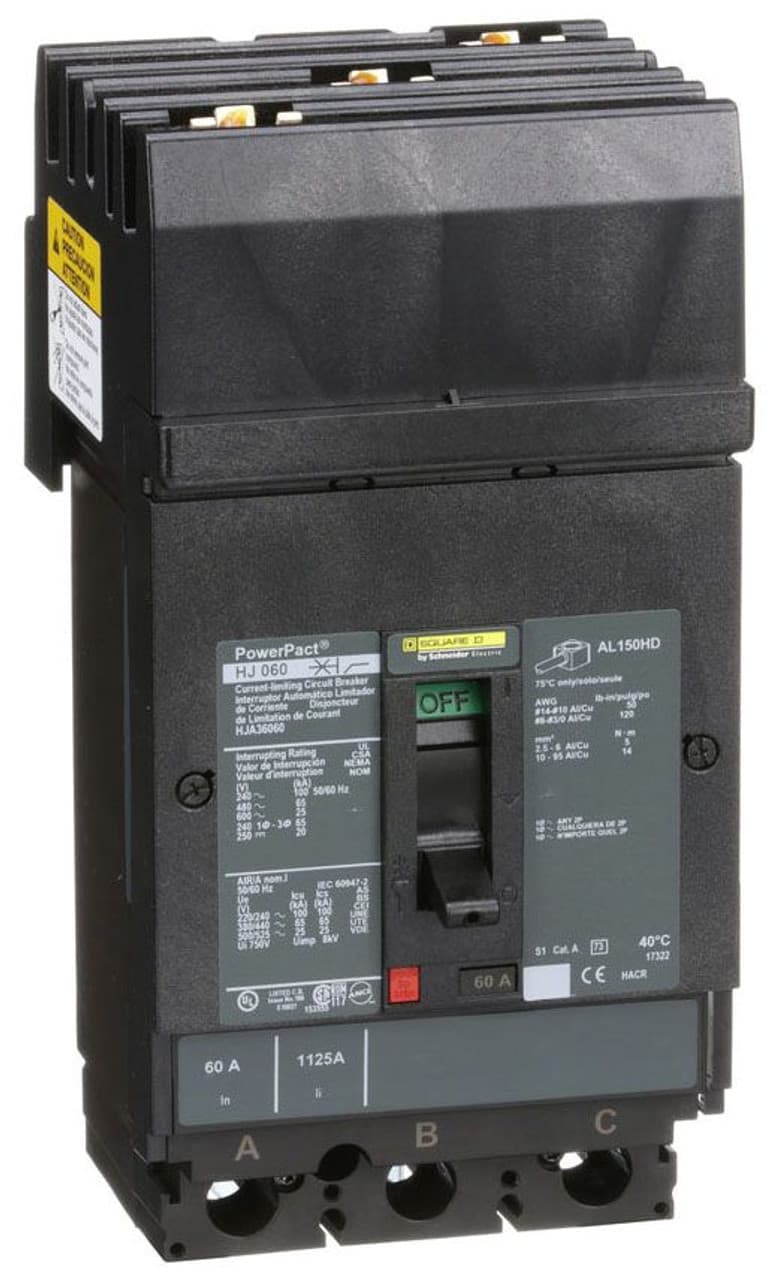

Square D by Schneider Electric HJA36060 is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJA sub-range, featuring a PowerPact H-Frame 150 TMD design. It is a 3-pole (3P) device with a rated current of 60A and offers thermal protection for overload and magnetic protection for short-circuits. The breaker is designed for I-line connection across ABC phases and supports a rated insulation voltage (Ui) of 750 V, with AC rated voltages of 600Vac and 600Y/347Vac, and a DC rated voltage of 250Vdc. It mounts on I-line with line side isolated plug-on jaws plus a mechanical I-Line bracket mechanism, ensuring a robust attachment. The net dimensions are 163 mm in height, 104 mm in width, and 86 mm in depth, with a degree of protection rated at IP40. The operating mode is manual toggle, and protection settings include over-current fixed at 60A, short-circuit hold current fixed at 800A, and short-circuit trip current fixed at 1450A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 60 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display, and it falls under utilisation category A.
