HJL36050T Schneider Electric Industrial Automation Components

HJL36050T on Powermatic Associates
Schneider Electric

Part#:HJL36050T

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

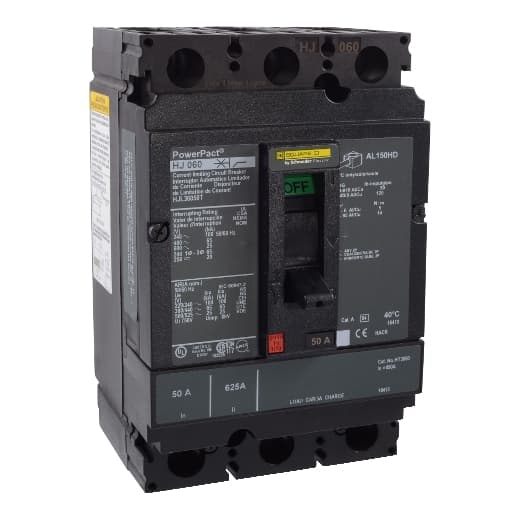

Square D by Schneider Electric HJL36050T is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJL sub-range, featuring a removable/interchangeable trip unit PowerPact H-Frame 150 TMD with 3 poles (3P) and a rated current of 50A. It operates at a rated insulation voltage (Ui) of 750 V, with AC rated voltages of 600Vac and 600Y/347Vac, and a DC rated voltage of 250Vdc. The device offers thermal protection for overload scenarios and magnetic protection for short-circuit conditions. It is designed for individual unit mount on plate, with a net height of 163 mm, width of 104 mm, and depth of 86 mm. The circuit breaker has an IP40 degree of protection, operates manually via a toggle, and has fixed protection settings for over-current at 50A, short-circuit hold current at 400A, and short-circuit trip current at 850A. Its rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 50 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is thermal-magnetic (fixed) with no display, and it falls under utilisation category A. Connection is facilitated by lugs on both load and line sides.

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Continuous Current Rating
    80 %
  • Depth
    4.36 in (110.74 mm)
  • Width
    4.12 in (104.65 mm)
  • Magnetic Tripping Current
    850 A
  • Magnetic Hold Current
    400 A
  • Mounting Mode
    Unit mount
  • Height
    6.4 in (162.56 mm)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Number Of Poles
    3P
  • Breaking Capacity Code
    J
  • Product Or Component Type
    Circuit breaker
  • Line Rated Current
    50 A
  • Range Of Product
    PowerPact H

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
