HJL36060U33X Schneider Electric Industrial Automation Components

What is the price of HJL36060U33X?
Purchase the HJL36060U33X from Powermatic Associates at the price of $2,294.00. Order today.

Out if stock but available for backorder.

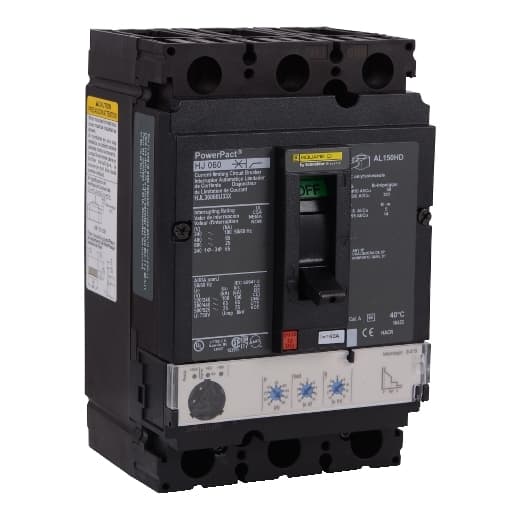

Square D by Schneider Electric HJL36060U33X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJL sub-range, featuring a PowerPact H-Frame 150 Micrologic 3.2S (LSI) design. It is a 3-pole (3P) device with a rated current of 60A and offers protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. The breaker has a rated insulation voltage (Ui) of 750 V, with AC rated voltages of 600Vac and 600Y/347Vac, and a DC rated voltage of 250Vdc. It is designed for individual unit mount on plate, with a net height of 163 mm, width of 104 mm, and depth of 86 mm. The degree of protection is IP40, and it operates with a toggle (manual) mechanism. Protection settings are adjustable, with L protection ranging from 0.25 to 1 x In (15A to 60A), S protection from 1.5 to 10 x Ir (90A to 600A), and I protection from 1.5 to 15 x In (90A to 900A). The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 60 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of up to 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2S (LSI) with no display, and it falls under utilisation category A. Connections are made via lugs on both load and line sides.
