HJL36070T Schneider Electric Electronic Components

HJL36070T on Powermatic Associates
Schneider Electric

Part#:HJL36070T

Manufacturer:Schneider Electric

Category:Electronic Components

Product Lifecycle:Active

Product description

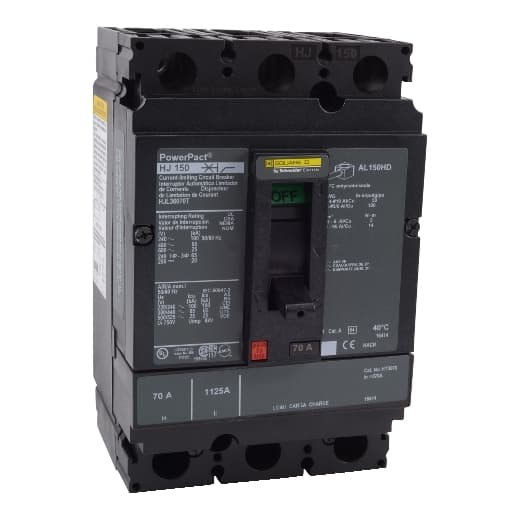

Square D by Schneider Electric HJL36070T is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJL sub-range. It features a removable/interchangeable trip unit PowerPacT H-Frame 150 TMD, designed for 3-pole (3P) configurations with a rated current of 70A. This MCCB operates at a rated insulation voltage (Ui) of 750 V, with AC rated voltages of 600Vac and 600Y/347Vac, and a DC rated voltage of 250Vdc. It offers thermal protection for overload scenarios and magnetic protection for short-circuit conditions. The connection type includes lugs on both load and line sides, and it is designed for individual unit mount on plate. The net dimensions are 163 mm in height, 104 mm in width, and 86 mm in depth, with a degree of protection rated at IP40. The operating mode is manual toggle, with over-current protection settings fixed at 70A, short-circuit hold current fixed at 800A, and short-circuit trip current fixed at 1450A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 70 AT, with a frame current rating of 150 AF. The short circuit breaking rating varies with voltage, up to 100kA at 240Vac according to UL489 standards. The trip unit type is thermal-magnetic (fixed) without a display, and it falls under utilisation category A.

Product Details

  • Magnetic Hold Current
    800 A
  • Number Of Poles
    3P
  • Breaking Capacity Code
    J
  • Width
    4.12 in (104.65 mm)
  • Product Or Component Type
    Circuit breaker
  • Depth
    4.36 in (110.74 mm)
  • Range Of Product
    PowerPact H
  • Line Rated Current
    70 A
  • Continuous Current Rating
    80 %
  • Magnetic Tripping Current
    1450 A
  • Height
    6.4 in (162.56 mm)
  • Mounting Mode
    Unit mount
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
