HJL36100M73SA Schneider Electric Industrial Automation Components

HJL36100M73SA on Powermatic Associates
Schneider Electric

Part#:HJL36100M73SA

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

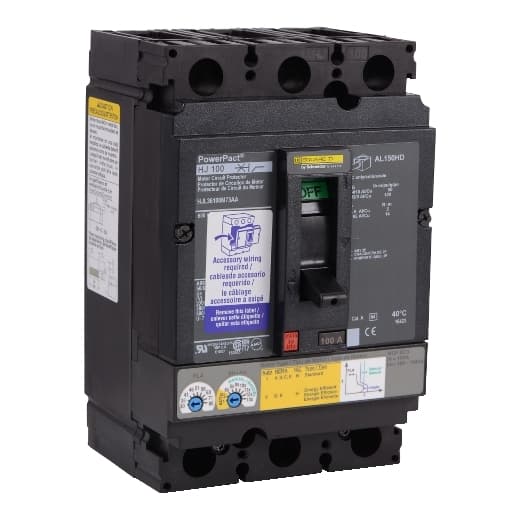

Schneider Electric - HJL36100M73SA

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Depth
    4.36 in (110.74 mm)
  • Height
    6.4 in (162.56 mm)
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Width
    4.12 in (104.65 mm)
  • [Ith] Conventional Free Air Thermal Current
    30…80 A
  • Breaking Capacity Code
    J
  • Magnetic Tripping Current
    180…1040 A
  • Mounting Mode
    Unit mount
  • Number Of Poles
    3P
  • Product Or Component Type
    Motor Circuit Protector
  • Range Of Product
    PowerPact H
  • Line Rated Current
    100 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HJL36100M73SA on Powermatic Associates is $2,363.00. Order now.
