HJL36150U53X Schneider Electric Industrial Automation Components

What is the price of HJL36150U53X?
Purchase the HJL36150U53X from Powermatic Associates at the price of $6,477.00. Order today.

Out if stock but available for backorder.

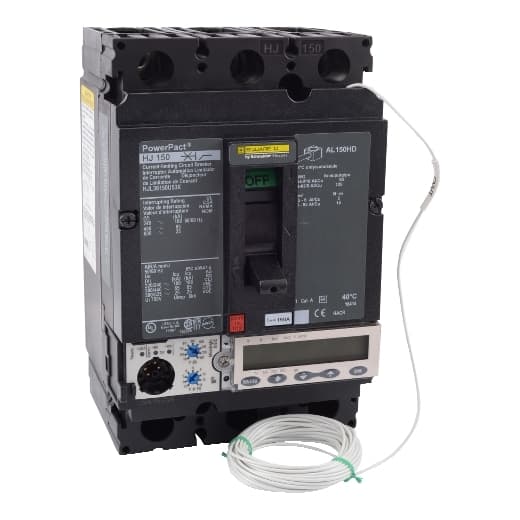

Square D by Schneider Electric HJL36150U53X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HJL sub-range, featuring a PowerPact H-Frame 150 Micrologic 5.2E (LSI) design. It is a 3-pole (3P) device with a rated current of 150A and offers a connection type of lugs on both load and line sides. The breaker is designed for individual unit mount on plate, with a net height of 163 mm, width of 104 mm, and depth of 86 mm. It provides protection functions including Long-time (L), Short-time with fixed time delay (S), Instantaneous (I), and Zone Selective Interlocking (ZSI). The rated insulation voltage (Ui) is 750 V, with AC rated voltages of 600Vac and 600Y/347Vac, and a DC rated voltage of 250Vdc. It has a degree of protection of IP40 and operates manually via a toggle. Protection settings are adjustable for overload (L), short-circuit with time delay (S), and instantaneous short-circuit (I). The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 150 AT, with a frame current rating of 150 AF. Short circuit breaking ratings vary by voltage, including 100kA at 240Vac, 65kA at 480Vac and 480Y/277Vac, 25kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc, all according to UL489 standards. The trip unit type is an electronic Micrologic Energy 5.2E (LSI) with an LCD display, offering measurement functions for current, voltage, power, energy metering, power quality, and harmonic analysis. It falls under utilisation category A.
