HJM36150 Schneider Electric Industrial Automation Components

HJM36150 on Powermatic Associates
Schneider Electric

Part#:HJM36150

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

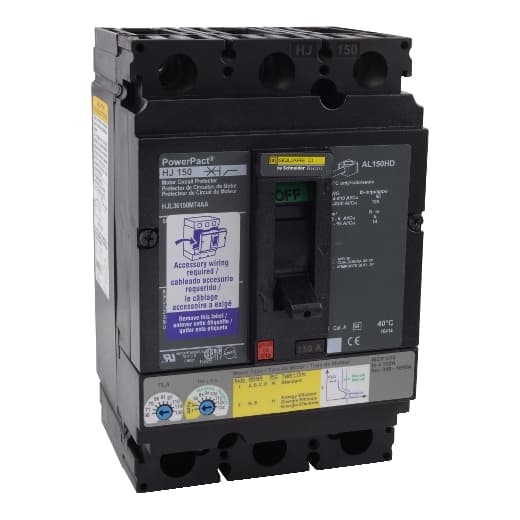

Schneider Electric - HJM36150

Product Details

  • Mounting Mode
    Unit mount
  • Depth
    4.36 in (110.74 mm)
  • Range Of Product
    PowerPact H
  • Magnetic Tripping Current
    1700 A
  • Line Rated Current
    150 A
  • Breaking Capacity Code
    J
  • Width
    4.12 in (104.65 mm)
  • Number Of Poles
    3P
  • Continuous Current Rating
    80 %
  • Magnetic Hold Current
    900 A
  • Product Or Component Type
    Circuit breaker
  • Height
    6.4 in (162.56 mm)
  • Electrical Connection
    Terminal nut load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HJM36150 on Powermatic Associates is $5,174.00. Order now.
