HLL36030M71 Schneider Electric Industrial Automation Components

HLL36030M71 on Powermatic Associates
Schneider Electric

Part#:HLL36030M71

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

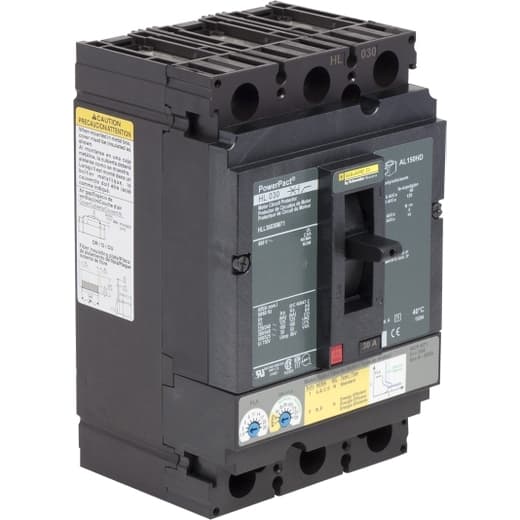

Square D by Schneider Electric HLL36030M71 is a Motor Protection Circuit Breaker (MPCB) within the PowerPacT HLL sub-range, designed for electronic motor protection, manual motor starting, and motor circuit protection. This PowerPact H-Frame 150 MCP (I) features a 3-pole (3P) design with a rated current of 30A and operates at a rated insulation voltage (Ui) of 750V, with AC and DC rated voltages of 600Y/347Vac and 500Vdc respectively. It supports a connection type of lugs on both load and line sides and offers instantaneous (I) protection. The device is designed for individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth, and it provides a degree of protection of IP40. The operating mode is manual toggle, with over-current protection fixed at 30A and instantaneous protection against short-circuit adjustable from 1 to 13 times the rated current (9A to 325A). The rated operating voltage (Ue) is 690V, with a rated impulse voltage (Uimp) of 8kV. The trip current rating is 30 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating that varies depending on the voltage, including 125kA at 240Vac, 100kA at 480Vac, 100kA at 480Y/277Vac, 50kA at 600Vac, 50kA at 600Y/347Vac, 20kA at 250Vdc, and 50kA at 500Vdc, all under UL489. The trip unit type is thermal-magnetic (adjustable) with no display, and it falls under utilisation category A.

Product Details

  • Range Of Product
    PowerPact H
  • Depth
    4.36 in (110.74 mm)
  • Mounting Mode
    Unit mount
  • [Ith] Conventional Free Air Thermal Current
    1.5…25 A
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Height
    6.4 in (162.56 mm)
  • Number Of Poles
    3P
  • Breaking Capacity Code
    L
  • Width
    4.12 in (104.65 mm)
  • Product Or Component Type
    Motor Circuit Protector
  • Line Rated Current
    30 A
  • Magnetic Tripping Current
    9…325 A
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HLL36030M71 on Powermatic Associates is $1,223.00. Order now.
