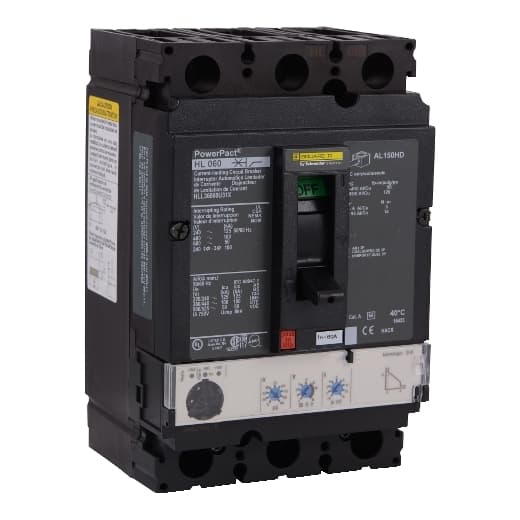

HLL36060U31X Schneider Electric Industrial Automation Components

HLL36060U31X on Powermatic Associates
Schneider Electric

Part#:HLL36060U31X

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Schneider Electric - HLL36060U31X

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Continuous Current Rating
    80 %
  • Depth
    4.36 in (110.74 mm)
  • Width
    4.12 in (104.65 mm)
  • Breaking Capacity Code
    L
  • Line Rated Current
    60 A
  • Range Of Product
    PowerPact H
  • Number Of Poles
    3P
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Height
    6.4 in (162.56 mm)
  • Product Or Component Type
    Circuit breaker
  • Mounting Mode
    Unit mount

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HLL36060U31X on Powermatic Associates is $3,008.00. Order now.
