Part#:HLL36100U33X

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

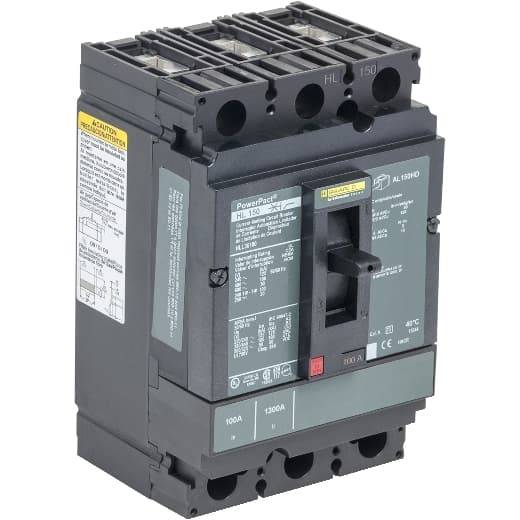

Square D by Schneider Electric HLL36100U33X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HLL sub-range, featuring a PowerPact H-Frame 150 Micrologic 3.2S (LSI) design. It is a 3-pole (3P) device with a rated current of 100A and offers protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. The breaker is designed for individual unit mount on plate, with lugs on both load and line sides for connection. It has a rated insulation voltage (Ui) of 750 V, rated voltages of 600Vac and 600Y/347Vac for AC, and 500Vdc for DC, with a net height of 163 mm, width of 104 mm, and depth of 86 mm. The degree of protection is IP40, and it operates manually via a toggle. Protection settings are adjustable for overload (0.35...1 x In), short-circuit with time delay (1.5...10 x lr), and instantaneous short-circuit protection (1.5...15 x In). The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 100 AT, with a frame current rating of 150 AF. Its short circuit breaking rating varies by voltage, up to 125kA at 240Vac and down to 20kA at 250Vdc under UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2S (LSI) without a display, categorized under utilisation category A.

Product Details

  • Electrical Connection
    Lugs load Lugs line
  • Depth
    4.36 in (110.74 mm)
  • Continuous Current Rating
    80 %
  • Width
    4.12 in (104.65 mm)
  • Mounting Mode
    Unit mount
  • Height
    6.4 in (162.56 mm)
  • Breaking Capacity Code
    L
  • Tightening Torque
    44.25 lbf.in (5 N.m) 0.00…0.15 in² (2.5…95 mm²) (AWG 14...AWG 3/0)
  • Number Of Poles
    3P
  • Product Or Component Type
    Circuit breaker
  • Range Of Product
    PowerPact H
  • Line Rated Current
    100 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
