HMIGTO2315 Schneider Electric Industrial Automation Components

HMIGTO2315 on Powermatic Associates
Schneider Electric

Part#:HMIGTO2315

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

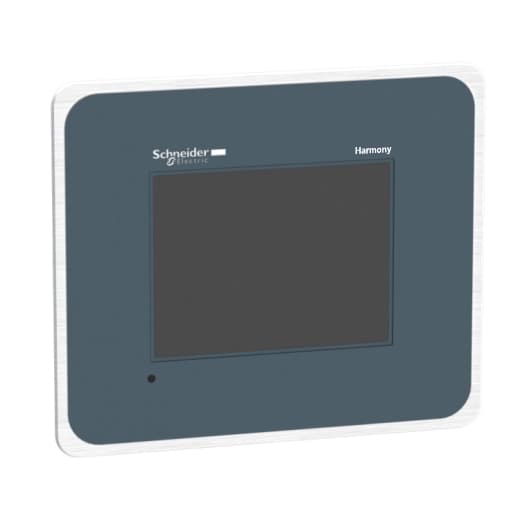

Schneider Electric HMIGTO2315 is an operator dialogue touchscreen HMI and Programmable Terminal (PT) designed for industrial applications. It features a stainless steel construction and supports 32 groups of 64 recipes, totaling up to 1024 ingredients, with the capability to manage recipes curves and log alarms. It includes a built-in real-time clock. For connectivity, it offers a USB mini-B port, a USB type A port, two RJ45 ports, and a 9-pin D-Sub connector. The HMIGTO2315 supports multiple communication protocols, including Modbus, Modbus TCP/IP, Uni-TE, RS-232C, RS-485, and Ethernet TCP/IP. It requires a 24Vdc power supply and is designed for flush mounting. The operating temperature range is 0 to +55°C, and it boasts an IP66K and NEMA 4X degree of protection. It has a connection capacity for a 4GB SD card for expansion and comes with 96MB of memory for applications. The display is a 5.7" QVGA 65K color screen with LED backlight, offering a pixel count of 320x240. It can be stored in temperatures ranging from -20 to +60°C. The operating system is Magelis, and the electrical durability of the backlight is rated at 50,000 hours.

Product Details

  • Battery Type
    Lithium internal RAM 100 days 5 day(s) 10 year(s)
  • [Us] Rated Supply Voltage
    24 V DC
  • Touch Sensitive Zone
    1024 x 1024
  • Inrush Current
    30 A
  • Supply
    External source
  • Front Material
    Stainless steel 304
  • Display Size
    5.7 inch
  • Display Resolution
    320 x 240 pixels QVGA
  • Product Mounting
    Flush mounting
  • Terminal Type
    Touchscreen display
  • Depth
    2.34 in (59.5 mm)
  • Range Of Product
    Harmony GTO
  • Supply Voltage Limits
    19.2…28.8 V
  • Net Weight
    2.65 lb(US) (1.2 kg)
  • Provided Equipment
    1 protective cover
  • Backlight Lifespan
    50000 hours white 77 °F (25 °C)
  • Data Backed Up
    512 kB internal RAM SRAM)
  • Width
    8.41 in (213.5 mm)
  • Display Colour
    65536 colours
  • Memory Description
    Flash EPROM, 96 MB
  • Type Of Cooling
    Natural convection
  • Operating System
    Harmony
  • Touch Panel
    Resistive film, 1000000 cycles
  • Software Designation
    Vijeo Designer configuration software >= V6.1
  • Enclosure Material
    PPT
  • Product Or Component Type
    Advanced touchscreen panel
  • Display Type
    Backlit colour TFT LCD
  • Height
    7.13 in (181 mm)
  • Brightness
    16 levels by touch panel 16 levels by software
  • Data Storage Equipment
    SD card, <= 32 GB SDHC card, <= 32 GB
  • Local Signalling
    Status LED green, steady offline Status LED green, steady operating Status LED orange, flashing software starting up Status LED red, steady power supply (ON) Status LED clear, faded power supply (OFF) COM2 LED yellow, steady data
  • Fixing Mode
    by 8 nuts by 4 L brackets
  • Maximum Power Consumption In W
    6.5 W when power is not supplied to external devices 4.5 W when backlight is OFF 5 W when backlight is dimmed 10.5 W
  • Character Font
    Taiwanese (traditional Chinese) Japanese (ANK, Kanji) Chinese (simplified Chinese) ASCII Korean
  • Downloadable Protocols
    Schneider Electric Modicon Modbus Schneider Electric Modicon Uni-TE Schneider Electric Modicon Modbus Plus Schneider Electric Modicon FIPWAY Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell
  • Integrated Connection Type
    COM1 serial link SUB-D 9 RS232C 2400...115200 bps COM2 serial link RJ45 RS485 2400...115200 bps COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI Ethernet RJ45 10BASE-T/100BASE-TX Ethernet RJ45 IEEE 802.3 USB 2.0 type A USB

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HMIGTO2315 on Powermatic Associates is $2,525.00. Order now.

HMIGTO2315 Related Documents

Product Datasheet-1631041213475.pdfCatalog-1631041213478.pdfInstruction Sheet-1631041213492.pdf
