HU361AWA Schneider Electric Industrial Automation Components

HU361AWA on Powermatic Associates
Schneider Electric

Part#:HU361AWA

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

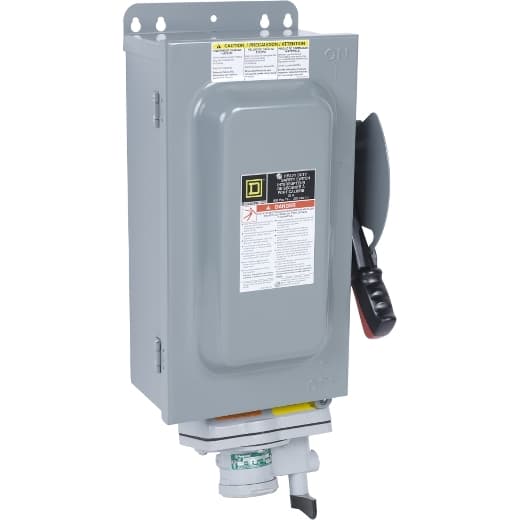

Schneider Electric - HU361AWA

Product Details

  • Wire Configuration
    4-wire
  • Disconnect Type
    Non-fusible disconnect switch
  • Mounting Type
    Surface
  • Width
    10.5 in (266.70 mm)
  • For Use With
    Plug ACP3034BC Appleton Powertite
  • Product
    Receptacle Switch
  • Depth
    7 in (177.80 mm)
  • Current Rating
    30 A
  • Electrical Connection
    Receptacle
  • Enclosure Rating NEMA 3R
    NEMA 12K
  • Phase
    3 phase
  • Number Of Poles
    3
  • Height
    16.5 in (419.10 mm)
  • Wire Size
    AWG 12...AWG 2 aluminium AWG 14...AWG 2 copper
  • Voltage Rating
    600 V AC 250 V DC
  • Maximum Horse Power Rating
    20 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 30 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 5 hp 250 V at DC conforming to NEC 430.52
  • Tightening Torque
    45 lbf.in (5.08 N.m) (AWG 6) 40 lbf.in (4.52 N.m) (AWG 8) 35 lbf.in (3.95 N.m) (AWG 14...AWG 10)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HU361AWA on Powermatic Associates is $2,076.00. Order now.
