Powermatic Associates Logo

HU367AWK Schneider Electric Industrial Automation Components

HU367AWK on Powermatic Associates
Schneider Electric

Part#:HU367AWK

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

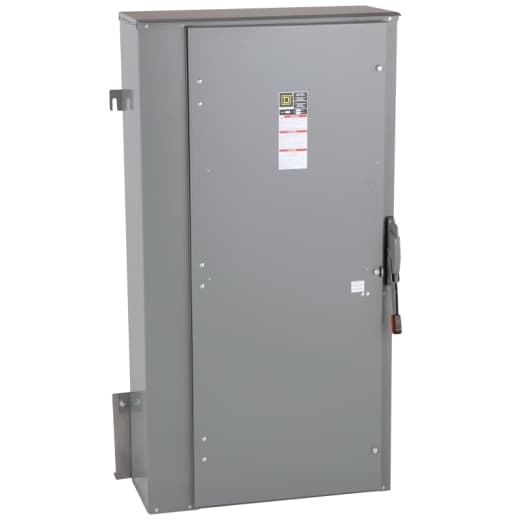

Schneider Electric - HU367AWK

Product Details

  • Width
    36.62 in (930.15 mm)
  • Product
    Single Throw Safety Switch
  • Fuse Type
    L
  • Height
    69.13 in (1755.90 mm)
  • Phase
    3 phase
  • Electrical Connection
    Lugs
  • Depth
    17.75 in (450.85 mm)
  • Factory Installed Neutral
    None
  • Tightening Torque
    375 lbf.in (42.37 N.m) 0.13…0.59 in² (85.01…380 mm²) (AWG 3/0...750 kcmil)
  • Disconnect Type
    Non-fusible disconnect
  • Wiring Configuration
    3-wire
  • Wire Size
    AWG 3/0...750 kcmil copper or aluminium
  • Current Rating
    800 A
  • Voltage Rating
    600 V AC/DC
  • Device Application
    Heavy application
  • Mounting Type
    Surface
  • Duty Rating
    Heavy duty
  • Enclosure Rating
    NEMA 3R/12 galvannealed steel
  • Net Weight
    380.08 lb(US) (172.4 kg)
  • Number Of Poles
    3
  • Maximum Horse Power Rating
    500 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 50 hp 600 V at AC 50-60 Hz for 1 phase conforming to NEC 430.52 500 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52 50 hp 600 V at DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of HU367AWK on Powermatic Associates is $13,097.00. Order now.
