ILA2E572PB1A0 Schneider Electric Industrial Automation Components

ILA2E572PB1A0 on Powermatic Associates
Schneider Electric

Part#:ILA2E572PB1A0

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

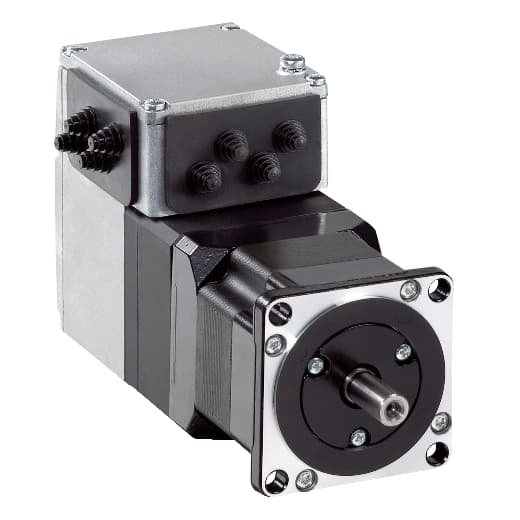

Schneider Electric ILA2E572PB1A0 is a DC servo motor that falls under the Servo motors sub-range. It features an integrated servo drive and DC motor with a single-turn encoder (16384ppr) on a smooth shaft and a double (2) motor stack designed for medium rotation speed and medium torque. The connection type is a printed circuit board (P.C.B.) connector, and it supports the EtherCAT communication protocol. It includes protection functions such as Safe Torque OFF (STO). The supply voltage ranges from 24Vdc to 48Vdc. This motor is designed to be mounted via a 57x57mm flange. The net dimensions are 92.2 mm in height, 57.2 mm in width, and 163.8 mm in depth. It can achieve a maximum torque of 0.78Nm, has a moment of inertia of 0.173kg.cm2, and offers rotational speeds of 1600rpm at 24Vdc and 3400rpm at 48Vdc, with a stall torque of 1.62Nm.

Product Details

  • Range Of Product
    Lexium integrated drive
  • Holding Brake
    Without
  • Number Of Mounting Holes
    4
  • Accuracy Error
    +/- 0.05 °
  • Service Life In Hours
    20000 h bearing
  • Phase
    Single phase
  • Device Short Name
    ILA
  • Communication Interface
    EtherCAT, Integrated
  • Centring Collar Diameter
    1.97 in (50 mm)
  • Nominal Torque
    6.90 lbf.in (0.78 N.m)
  • Winding Type
    Medium speed of rotation and medium torque
  • Mounting Support
    Flange
  • Second Shaft
    Without second shaft end
  • Speed Feedback Resolution
    16384 points/turn
  • Motor Type
    AC Synchronous Servo Motor
  • Motor Flange Size
    2.24 in (57 mm)
  • Voltage State 0 Guaranteed
    -3...4.5 V
  • Continuous Stall Torque
    6.90 lbf.in (0.78 N.m)
  • Type Of Cooling
    Natural convection
  • Shaft Diameter
    0.35 in (9 mm)
  • Discrete Output Voltage
    23...25 V
  • Gear Box Type
    Without
  • Shaft End
    Untapped
  • Voltage State 1 Guaranteed
    15...30 V
  • Peak Stall Torque
    14.34 lbf.in (1.62 N.m)
  • Number Of Motor Poles
    6
  • Transmission Rate
    100 Mbits
  • Centring Collar Depth
    0.06 in (1.6 mm)
  • Input/Output Type
    4 signals (each be used as input or output)
  • Marking
    CE
  • Associated Fuse Rating
    16 A
  • Net Weight
    3.75 lb(US) (1.7 kg)
  • Network Type
    DC
  • Number Of Motor Stacks
    2
  • Supply Voltage Limits
    18…55.2 V
  • Maximum Radial Force Fr
    107 N
  • Product Or Component Type
    Motion integrated drive
  • Feedback Type
    Single turn encoder
  • Electrical Connection
    Printed circuit board connector
  • Commissioning Interface
    RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
  • Length
    6.45 in (163.8 mm)
  • Circle Diameter Of The Mounting Holes
    2.62 in (66.6 mm)
  • Mounting Holes Diameter
    0.20 in (5.2 mm)
  • Shaft Length
    0.79 in (20 mm)
  • Rotor Inertia
    0.173 kg.cm²
  • Discrete Input Current
    10 mA at 24 V safety input 2 mA at 24 V 24 V signal interface
  • Maximum Switching Current
    100 mA per output 200 mA total
  • Maximum Axial Force Fa
    104 N force pressure) 104 N tensile force)
  • Current Consumption
    7000 mA maximum continuous 8500 mA peak
  • [Us] Rated Supply Voltage
    48 V 24 V
  • Nominal Speed
    1600 rpm 24 V 3400 rpm 48 V
  • Protection Type
    Short circuit of the output voltage Overload of output voltage Safe torque off

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of ILA2E572PB1A0 on Powermatic Associates is $2,452.50. Order now.
