Part#:ILM1001P01F0000

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

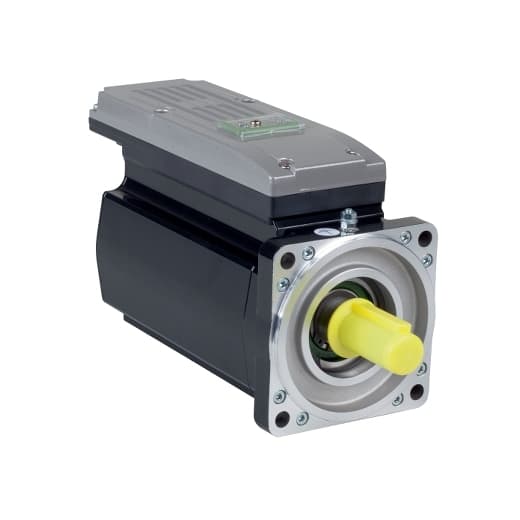

Schneider Electric ILM1001P01F0000 is an AC servo motor within the Servo motors sub-range, featuring an integrated servo drive and motor. It is designed with an absolute single-turn 128ppr SinCos encoder, a smooth shaft, a holding brake, and a single motor stack. The communication protocol supported is HIPERFACE. This motor has a rated current of 1.4A and is mounted via a 100x100mm flange. The net width of the motor is 100 mm. It offers a degree of protection rated at IP54. The torque is rated at 1.9Nm, with a rated active power of 0.6kW or 600W. It can achieve a maximum torque of 9.6Nm and operates at a rotational speed of 3000rpm, with a stall torque of 2.5Nm.

Product Details

  • Continuous Stall Current
    1.8 A
  • Key Width
    1.18 in (30 mm)
  • Holding Brake
    With
  • Maximum Axial Force Fa
    0.2 x Fr
  • Number Of Mounting Holes
    4
  • Nominal Output Power
    600 W
  • Second Shaft
    Without second shaft end
  • Circle Diameter Of The Mounting Holes
    4.53 in (115 mm)
  • Nominal Torque
    16.82 lbf.in (1.9 N.m)
  • Shaft Length
    1.57 in (40 mm)
  • Mounting Support
    International standard flange
  • Length
    9.57 in (243 mm)
  • Range Of Product
    PacDrive 3
  • Shaft End
    Untapped
  • Holding Torque
    48.68 lbf.in (5.5 N.m) holding brake
  • Shaft Diameter
    0.75 in (19 mm)
  • Back Emf Constant
    90 V/krpm 68 °F (20 °C)
  • Centring Collar Diameter
    3.74 in (95 mm)
  • Product Or Component Type
    Servo motor integrated drive
  • Continuous Stall Torque
    22.13 lbf.in (2.5 N.m)
  • Maximum Current Irms
    7.4 A
  • Motor Flange Size
    3.94 in (100 mm)
  • Rotor Inertia
    2.1 kg.cm²
  • [Us] Rated Supply Voltage
    250...700 V
  • Nominal Speed
    3000 rpm
  • Feedback Type
    Absolute single turn SinCos Hiperface
  • Type Of Cooling
    Natural convection
  • Net Weight
    12.57 lb(US) (5.7 kg)
  • Device Short Name
    ILM
  • Line Rated Current
    1.4 A
  • Torque Constant
    1.39 N.m/A 248 °F (120 °C)
  • Peak Stall Torque
    84.97 lbf.in (9.6 N.m)
  • Speed Feedback Resolution
    128 periods
  • Number Of Motor Poles
    8
  • Number Of Motor Stacks
    1
  • Mounting Holes Diameter
    0.35 in (9 mm)
  • Centring Collar Depth
    0.14 in (3.5 mm)
  • Stator Resistance
    9.8 Ohm 68 °F (20 °C) Ph/Ph 6.82 Ohm 248 °F (120 °C) Ph/N
  • Stator Inductance
    45.7 mH 68 °F (20 °C) Ph/Ph 22.85 mH 248 °F (120 °C) Ph/N
  • Maximum Radial Force Fr
    900 N 1000 rpm 720 N 2000 rpm 630 N 3000 rpm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of ILM1001P01F0000 on Powermatic Associates is $4,076.98. Order now.
