JGL36175 Schneider Electric Industrial Automation Components

JGL36175 on Powermatic Associates
Schneider Electric

Part#:JGL36175

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

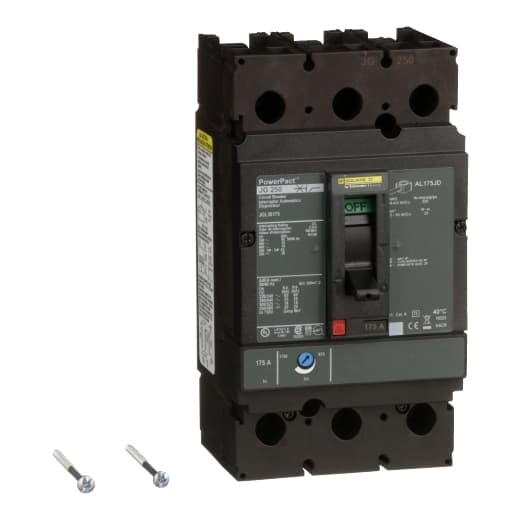

Square D by Schneider Electric JGL36175 is a Moulded Case Circuit Breaker (MCCB) from the PowerPacT JGL sub-range, designed with a PowerPact J-Frame 250 TMD 3P 175A 600Vac 18kA with lugs 80% rated. It features a 3-pole (3P) configuration and offers both thermal protection for overload and magnetic protection for short-circuit scenarios. The rated current is 175A, with a rated insulation voltage (Ui) of 750 V and a rated voltage (AC) of 600Vac 600Y/347Vac. This unit is designed for individual unit mount on plate, with dimensions of 191 mm in height, 105 mm in width, and 127 mm in depth. It has a degree of protection of IP40 and operates with a toggle (manual) mechanism. Protection settings include over-current fixed at 175A and short-circuit pickup current adjustable between 875A and 1750A. The rated operating voltage (Ue) is 690 V, with a rated impulse voltage (Uimp) of 8 kV. The trip current rating is 175 AT, and the frame current rating is 250 AF. It has a short circuit breaking rating of 65kA (240Vac; UL489), 35kA (480Vac; UL489), 35kA (480Y/277Vac; UL489), 18kA (600Vac; UL489), 18kA (600Y/347Vac; UL489), 20kA (250Vdc; UL489), and 20kA (500Vdc; UL489). The trip unit type is thermal-magnetic (adjustable) with no display, and it falls under the utilisation category A.

Product Details

  • Tightening Torque
    230.12 lbf.in (26 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 4...AWG 4/0)
  • Number Of Poles
    3P
  • Width
    4.12 in (104.65 mm)
  • Magnetic Hold Current
    875 A
  • Depth
    5 in (127.00 mm)
  • Breaking Capacity Code
    G
  • Continuous Current Rating
    80 %
  • Height
    7.52 in (191.01 mm)
  • Magnetic Tripping Current
    1750 A
  • Product Or Component Type
    Circuit breaker
  • Electrical Connection
    Lugs load Lugs line

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of JGL36175 on Powermatic Associates is $3,779.00. Order now.
