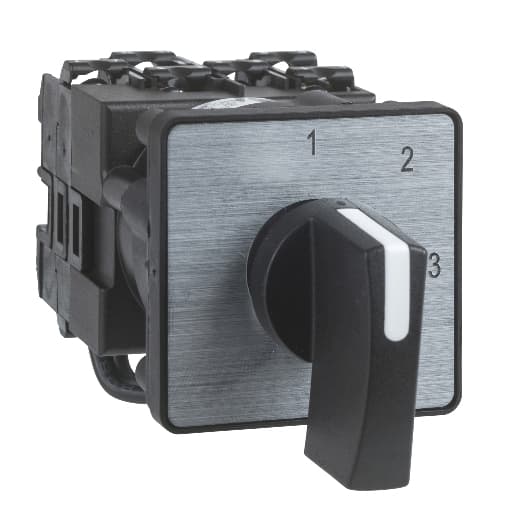

K2B1002HLH Schneider Electric Industrial Automation Components

Product Details

• Product Or Component Type
  Complete cam switch
• Presentation Of Legend
  With metallic legend, 0 - 1 black marking
• Short-Circuit Current
  10000 A
• Mechanical Durability
  1000000 cycles
• Range Of Product
  Harmony K
• Off Position
  With Off position
• Positive Opening
  With
• Component Name
  K2
• [Ithe] Conventional Enclosed Thermal Current
  16 A
• Return
  Without
• CAD Overall Height
  1.77 in (45 mm)
• Contact Operation
  Slow-break
• Mounting Location
  Front
• Switching Positions
  Right: 0° - 90°
• [Ith] Conventional Free Air Thermal Current
  20 A
• Poles Description
  2P
• CAD Overall Depth
  3.03 in (77 mm)
• Net Weight
  0.29 lb(US) (0.13 kg)
• Cam Switch Head Type
  With front plate 45 x 45 mm
• Type Of Operator
  Black handle 1.38 in (35 mm)
[Ui] Rated Insulation Voltage
690 V 3)IEC 60947-1
CAD Overall Width
1.77 in (45 mm)
Cam Switch Function
Switch
Switching Angle
90 °
Fixing Mode
Multifixing
Short-Circuit Protection
20 A cartridge fuse gG
Rotary Handle Padlocking
Without
[Uimp] Rated Impulse Withstand Voltage
4 kV in isolating function 6 kV IEC 60947-1
Electrical Connection
Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm² Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²
IP Degree Of Protection
IP40 conforming to IEC 529 IP40 conforming to NF C 20-010
Maximum Operating Rate
2.5 cyc/mn AC-21 2.5 cyc/mn AC-23 2.5 cyc/mn AC-3 8.333 cyc/mn AC-15
Electrical Durability
200000 cycles AC-23 200000 cycles AC-3 600000 cycles AC-15 600000 cycles AC-21
