LADR2 Schneider Electric Industrial Automation Components

LADR2 on Powermatic Associates
Schneider Electric

Part#:LADR2

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

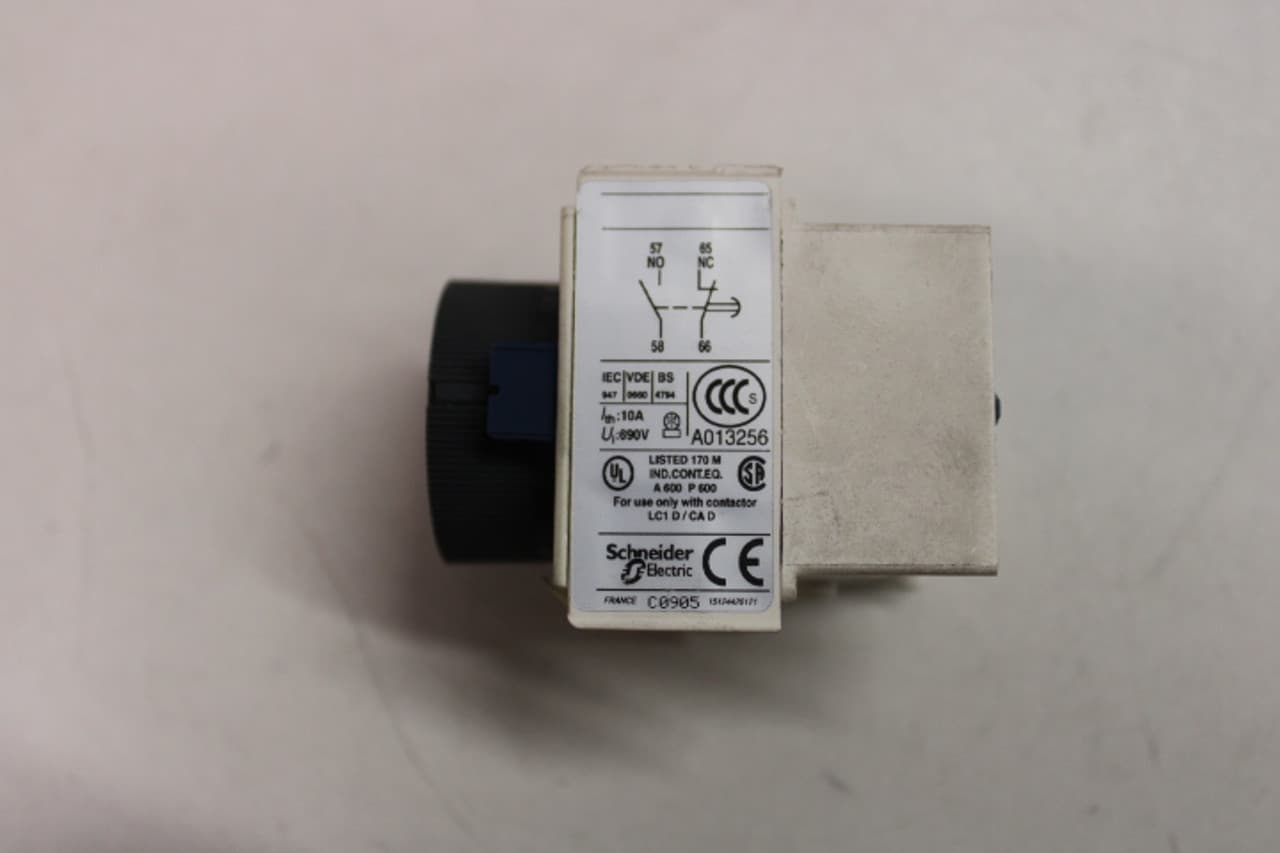

Schneider Electric LADR2 is an auxiliary contact within the Deca sub-range, designed to function as a time-delayed auxiliary contact block or switch block. It features screw connections for secure installation and is equipped with 2 poles. This part is designed for front clip-on mounting, simplifying the installation process. It includes 1 Normally Open (NO) auxiliary contact and 1 Normally Closed (NC) auxiliary contact. The LADR2 offers a time delay range of 0.1 to 30 seconds for the OFF-delay function, allowing for customizable operation based on specific application requirements.

Product Details

  • Contact Configuration:
    1NO-1NC
  • Mounting:
    Front
  • Timing Mode:
    Off Delay
  • Type:
    Pneumatic
  • Shipping Width:
    2.00 In.
  • Series:
    LADR
  • Shipping Height:
    2.00 In.
  • Used On:
    TeSys D-Line Contactor and Starter
  • Shipping Weight:
    0.15 lbs.
  • Timing Range:
    0.1 to 30 Sec
  • Volts:
    690 VAC
  • Shipping Length:
    3.00 In.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LADR2 on Powermatic Associates is $155.63. Order now.
