LC1D09BNE Schneider Electric Industrial Automation Components

LC1D09BNE on Powermatic Associates
Schneider Electric

Part#:LC1D09BNE

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

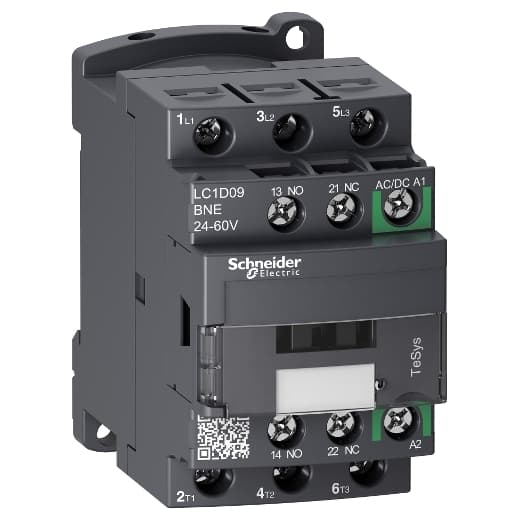

Schneider Electric LC1D09BNE is a magnetic contactor from the Deca Green sub-range, featuring a low-consumption coil that is electronically controlled, consuming 1.1VA / 0.7W. It offers screw connections for installation and operates with 3 poles (3P; 3NO). The rated current is 25A under AC-1 conditions and 9A at 440Vac under AC-3 conditions. Designed for DIN rail mounting, it has an IP20 degree of protection. The control voltage ranges from 20.4-66Vdc (24-60Vdc nominal; 0.85...1.1 x Uc) for DC and 20.4-66Vac (24-60Vac nominal; 50Hz/60Hz; 0.85...1.1 x Uc) for AC, with a rated operating voltage (Ue) of 690 V. It includes 1 Normally Open (NO) auxiliary contact and 1 Normally Closed (NC) auxiliary contact, both instantaneous. The rated impulse voltage (Uimp) is 6 kV. Rated active power spans from 2.2kW at 220-230Vac to 5.5kW at 660-690Vac under AC-3 conditions. Rated power in horsepower varies from 0.33HP at 115Vac to 7.5HP at 575-600Vac, accommodating various single-phase and three-phase applications under UL/CSA standards. Mechanical durability is rated at 15 million operations at no load, with a phase-to-phase rated voltage of 690 V and a power consumption of 0.7 W.

Product Details

  • Poles Description
    3P
  • Device Short Name
    LC1D
  • Product Name
    TeSys D Green
  • Heat Dissipation
    0.6 W 50/60 Hz
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Front Cover
    With
  • Range
    TeSys
  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz
  • Overvoltage Category
    III
  • Minimum Switching Voltage
    17 V signalling circuit
  • Power Pole Contact Composition
    3 NO
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Inrush Power In VA
    15 VA 50/60 Hz 68 °F (20 °C))
  • Inrush Power In W
    14 W 68 °F (20 °C)
  • Signalling Circuit Frequency
    25...400 Hz
  • Coil Type
    AC/DC electronic
  • Rated Breaking Capacity
    250 A 440 V power circuit IEC 60947
  • Average Impedance
    2.5 mOhm - Ith 25 A 50 Hz power circuit
  • Product Or Component Type
    Contactor
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Hold-In Power Consumption In VA
    0.9 VA 68 °F (20 °C)) 50/60 Hz
  • Coil Technology
    Built-in bidirectional peak limiting
  • Minimum Switching Current
    5 mA signalling circuit
  • Insulation Resistance
    > 10 MOhm signalling circuit
  • Mechanical Durability
    15 Mcycles
  • Hold-In Power Consumption In W
    0.6 W 68 °F (20 °C)
  • [Ith] Conventional Free Air Thermal Current
    10 A 140 °F (60 °C) signalling circuit 25 A 140 °F (60 °C) power circuit
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • [Uc] Control Circuit Voltage
    24...60 V AC 50/60 Hz 24...60 V DC
  • [Ui] Rated Insulation Voltage
    Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1
  • [Ie] Rated Operational Current
    9 A 140 °F (60 °C)) <= 440 V AC-3 power circuit 25 A 140 °F (60 °C)) <= 440 V AC-1 power circuit
  • Utilisation Category
    AC-1 AC-3
  • Contactor Application
    Motor control Resistive load
  • Power Dissipation Per Pole
    1.56 W AC-1 0.2 W AC-3
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • [Icw] Rated Short-Time Withstand Current
    100 A - 1 s signalling circuit 120 A - 500 ms signalling circuit 140 A - 100 ms signalling circuit 30 A 104 °F (40 °C) - 10 min power circuit 61 A 104 °F (40 °C) - 1 min power circuit 105 A 104 °F (40 °C) - 10 s power circuit
  • Mounting Support
    Rail Plate
  • Operating Time
    45...55 ms closing 20...90 ms opening
  • Electrical Durability
    2.4 Mcycles 8 A AC-3 <= 440 V 0.6 Mcycles 25 A AC-1 <= 440 V
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Irms Rated Making Capacity
    250 A 440 V power circuit IEC 60947 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 25 A gG <= 690 V type 1 power circuit 20 A gG <= 690 V type 2 power circuit
  • Connections - Terminals
    Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)fl
  • Tightening Torque
    Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Power circuit 15.05 lb
  • Standards
    EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
  • Control Circuit Voltage Limits
    <= 0.1 Uc -40…158 °F (-40…70 °C) drop-out AC/DC 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational DC 1...1.1 Uc 140…158 °F (60…70 °C) operational AC/DC
  • Motor Power HP (UL / CSA)
    0.33 hp 115 V at AC 60 Hz for 1 phase 1 hp 230/240 V at AC 60 Hz for 1 phase 2 hp 200/208 V at AC 60 Hz for 3 phase 2 hp 230/240 V at AC 60 Hz for 3 phase 5 hp 460/480 V at AC 60 Hz for 3 phase 7.5 hp 575/600 V at AC 60 Hz for 3 p
  • Motor Power Kw
    2.2 kW 220...230 V AC 50 Hz AC-3) 4 kW 380...400 V AC 50 Hz AC-3) 4 kW 415 V AC 50 Hz AC-3) 4 kW 440 V AC 50 Hz AC-3) 5.5 kW 500 V AC 50 Hz AC-3) 5.5 kW 660...690 V AC 50 Hz AC-3)
  • Product Certifications
    CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D09BNE on Powermatic Associates is $130.68. Order now.
