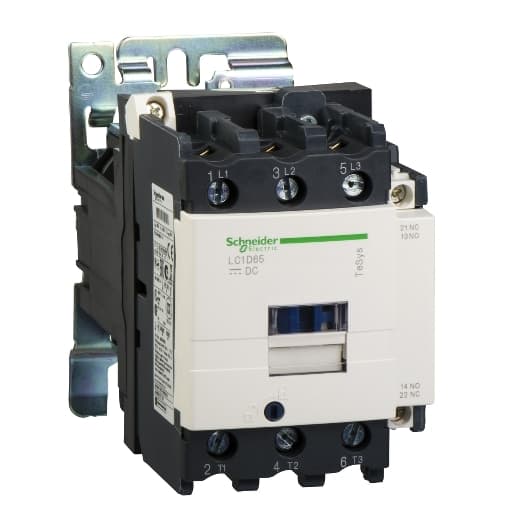

LC1D1156BD Schneider Electric Industrial Automation Components

Product Details

• Power Pole Contact Composition
  3 NO
• Signalling Circuit Frequency
  25...400 Hz
• Rated Breaking Capacity
  1100 A 440 V power circuit IEC 60947
• Front Cover
  With
• Minimum Switching Voltage
  17 V signalling circuit
• Product Or Component Type
  Contactor
• Maximum Operating Rate
  1200 cyc/h 140 °F (60 °C)
• Minimum Switching Current
  5 mA signalling circuit
• Device Short Name
  LC1D
• Range
  TeSys
• [Uimp] Rated Impulse Withstand Voltage
  8 kV IEC 60947
• Inrush Power In W
  270…365 W 68 °F (20 °C))
• Product Name
  TeSys D
• [Ith] Conventional Free Air Thermal Current
  200 A 140 °F (60 °C) power circuit
• Poles Description
  3P
• [Uc] Control Circuit Voltage
  24 V DC
• Time Constant
  25 ms
• Coil Technology
  With integral suppression device
• Auxiliary Contact Composition
  1 NO + 1 NC
• Insulation Resistance
  > 10 MOhm signalling circuit
Overvoltage Category
III
Hold-In Power Consumption In W
2.4…5.1 W 68 °F (20 °C)
Mechanical Durability
8 Mcycles
Average Impedance
0.6 mOhm - Ith 200 A 50 Hz power circuit
Control Circuit Type
DC standard
Mounting Support
Rail Plate
[Ie] Rated Operational Current
200 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit 115 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit
[Ue] Rated Operational Voltage
Power circuit <= 1000 V AC 25...400 Hz Power circuit <= 300 V DC
Power Dissipation Per Pole
24 W AC-1 7.9 W AC-3
Operating Time
20...35 ms closing 40...75 ms opening
Contactor Application
Motor control Resistive load
Electrical Durability
0.8 Mcycles 200 A AC-1 <= 440 V 0.95 Mcycles 115 A AC-3 <= 440 V
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Auxiliary Contacts Type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
Non-Overlap Time
1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Irms Rated Making Capacity
1260 A 440 V power circuit IEC 60947 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1
Utilisation Category
AC-3 AC-1 AC-4
Connections - Terminals
Control circuit lugs-ring terminals 0.31 in (8 mm)) Power circuit lugs-ring terminals 0.98 in (25 mm)) Power circuit bars 1 5 x 25 mm
Associated Fuse Rating
250 A gG <= 690 V type 1 power circuit 200 A gG <= 690 V type 2 power circuit 10 A gG signalling circuit
Control Circuit Voltage Limits
0.75...1.2 Uc -40…131 °F (-40…55 °C) operational DC 0.15...0.4 Uc -40…158 °F (-40…70 °C) drop-out DC 1...1.2 Uc 131…158 °F (55…70 °C) operational DC
Motor Power HP (UL / CSA)
30 hp 200/208 V at AC 50/60 Hz for 3 phase 40 hp 230/240 V at AC 50/60 Hz for 3 phase 75 hp 460/480 V at AC 50/60 Hz for 3 phase 100 hp 575/600 V at AC 50/60 Hz for 3 phase
Tightening Torque
Control circuit 10.62 lbf.in (1.2 N.m) lugs-ring terminals flat Ø 6 mm M3.5 Control circuit 10.62 lbf.in (1.2 N.m) lugs-ring terminals Philips No 2 M3.5 Power circuit 106.21 lbf.in (12 N.m) lugs-ring terminals hexagonal 0.51 in (13 mm) M8 P
Product Certifications
GOST CCC RINA CSA UL BV GL LROS (Lloyds register of shipping) DNV UKCA
Standards
CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
[Icw] Rated Short-Time Withstand Current
250 A 104 °F (40 °C) - 10 min power circuit 550 A 104 °F (40 °C) - 1 min power circuit 950 A 104 °F (40 °C) - 10 s power circuit 1100 A 104 °F (40 °C) - 1 s power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling ci
[Ui] Rated Insulation Voltage
Power circuit 600 V CSA Power circuit 600 V UL Power circuit 1000 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL
Motor Power Kw
30 kW 220...230 V AC 50/60 Hz AC-3) 55 kW 380...400 V AC 50/60 Hz AC-3) 59 kW 415...440 V AC 50/60 Hz AC-3) 75 kW 500 V AC 50/60 Hz AC-3) 80 kW 660...690 V AC 50/60 Hz AC-3) 65 kW 1000 V AC 50/60 Hz AC-3) 18.5 kW 400 V AC 50/
