LC1D323P7 Schneider Electric Industrial Automation Components

LC1D323P7 on Powermatic Associates
Schneider Electric

Part#:LC1D323P7

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

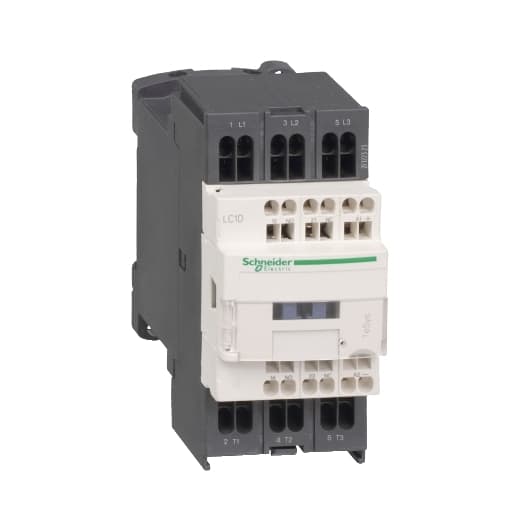

Schneider Electric LC1D323P7 is a magnetic contactor from the Deca sub-range, featuring spring connections and designed with 3 poles (3NO). It has a rated current of 50A for AC-1 and 32A for AC-3 at 440Vac. This contactor is suitable for DIN rail mounting and has a net width of 45 mm. It offers a degree of protection rated at IP20 and operates with a control voltage range of 184-253Vac at 50Hz and 195.5-253Vac at 60Hz, with a nominal voltage of 230Vac. The rated operating voltage (Ue) is up to 690 V, and it includes 1 normally open (NO) auxiliary contact. The rated impulse voltage (Uimp) is 6 kV. Its rated active power reaches up to 18.5kW for AC-3 across various voltages, and it also features 1 normally closed (NC) auxiliary contact with a contact type of 1NO+1NC instantaneous aux. The rated power in horsepower (HP) varies from 2HP at 115Vac in single-phase to 25HP at 575-600Vac in three-phase, under UL/CSA standards. The mechanical durability of the LC1D323P7 is rated at 15 million operations at no load, and its electrical durability with load is 1.6 million operations. The rated voltage for phase-to-phase connections is 690 V.

Product Details

  • Product Name
    TeSys D
  • Rated Breaking Capacity
    550 A 440 V power circuit IEC 60947
  • Heat Dissipation
    2…3 W 50/60 Hz
  • Poles Description
    3P
  • Overvoltage Category
    III
  • Mechanical Durability
    15 Mcycles
  • Minimum Switching Voltage
    17 V signalling circuit
  • Front Cover
    With
  • Coil Technology
    Without built-in suppressor module
  • Insulation Resistance
    > 10 MOhm signalling circuit
  • Power Pole Contact Composition
    3 NO
  • Auxiliary Contact Composition
    1 NO + 1 NC
  • Maximum Operating Rate
    3600 cyc/h 140 °F (60 °C)
  • Range
    TeSys
  • Device Short Name
    LC1D
  • Control Circuit Type
    AC 50/60 Hz
  • [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947
  • Minimum Switching Current
    5 mA signalling circuit
  • [Uc] Control Circuit Voltage
    230 V AC 50/60 Hz
  • Average Impedance
    2 mOhm - Ith 50 A 50 Hz power circuit
  • Product Or Component Type
    Contactor
  • Signalling Circuit Frequency
    25...400 Hz
  • Non-Overlap Time
    1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  • [Ie] Rated Operational Current
    32 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit 50 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
  • [Ue] Rated Operational Voltage
    Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
  • Contactor Application
    Resistive load Motor control
  • Power Dissipation Per Pole
    2 W AC-3 5 W AC-1
  • Electrical Durability
    1.65 Mcycles 32 A AC-3 <= 440 V 1.4 Mcycles 50 A AC-1 <= 440 V
  • Mounting Support
    Rail Plate
  • [Ith] Conventional Free Air Thermal Current
    10 A 140 °F (60 °C) signalling circuit 50 A 140 °F (60 °C) power circuit
  • Operating Time
    12...22 ms closing 4...19 ms opening
  • Auxiliary Contacts Type
    Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  • Hold-In Power Consumption In VA
    7.5 VA 60 Hz 0.3 68 °F (20 °C)) 7 VA 50 Hz 0.3 68 °F (20 °C))
  • Safety Reliability Level
    B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  • Inrush Power In VA
    70 VA 60 Hz 0.75 68 °F (20 °C)) 70 VA 50 Hz 0.75 68 °F (20 °C))
  • Utilisation Category
    AC-3 AC-1 AC-4
  • Irms Rated Making Capacity
    140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 550 A 440 V power circuit IEC 60947
  • Associated Fuse Rating
    10 A gG signalling circuit IEC 60947-5-1 63 A gG <= 690 V type 1 power circuit 63 A gG <= 690 V type 2 power circuit
  • Connections - Terminals
    Control circuit spring terminals 1 0.00 in² (2.5 mm²)flexible without cable end Control circuit spring terminals 2 0.00 in² (2.5 mm²)flexible without cable end Power circuit spring terminals 1 0.01 in² (4 mm²)flexible without cable end Powe
  • Control Circuit Voltage Limits
    0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
  • Motor Power HP (UL / CSA)
    2 hp 115 V at AC 50/60 Hz for 1 phase 5 hp 230/240 V at AC 50/60 Hz for 1 phase 7.5 hp 200/208 V at AC 50/60 Hz for 3 phase 10 hp 230/240 V at AC 50/60 Hz for 3 phase 20 hp 460/480 V at AC 50/60 Hz for 3 phase 30 hp 575/600 V at A
  • Motor Power Kw
    7.5 kW 220...230 V AC 50/60 Hz AC-3) 15 kW 380...400 V AC 50/60 Hz AC-3) 15 kW 415...440 V AC 50/60 Hz AC-3) 18.5 kW 500 V AC 50/60 Hz AC-3) 18.5 kW 660...690 V AC 50/60 Hz AC-3) 7.5 kW 400 V AC 50/60 Hz AC-4)
  • [Ui] Rated Insulation Voltage
    Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL
  • [Icw] Rated Short-Time Withstand Current
    260 A 104 °F (40 °C) - 10 s power circuit 430 A 104 °F (40 °C) - 1 s power circuit 60 A 104 °F (40 °C) - 10 min power circuit 138 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
  • Standards
    CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
  • Product Certifications
    DNV GL LROS (Lloyds register of shipping) UL CCC RINA CSA BV GOST

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1D323P7 on Powermatic Associates is $217.04. Order now.
