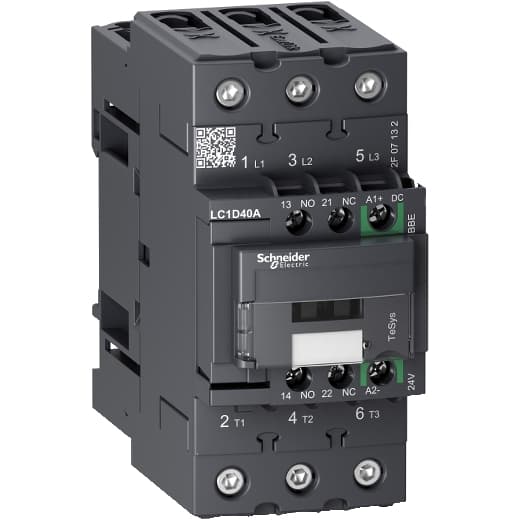

LC1D40ABBE Schneider Electric Industrial Automation Components

Product Details

• Overvoltage Category
  III
• [Ue] Rated Operational Voltage
  Power circuit <= 690 V AC 25...400 Hz
• Product Name
  TeSys D Green
• Power Pole Contact Composition
  3 NO
• Poles Description
  3P
• Minimum Switching Current
  5 mA signalling circuit
• [Uimp] Rated Impulse Withstand Voltage
  6 kV IEC 60947
• Hold-In Power Consumption In W
  0.5 W 68 °F (20 °C)
• Auxiliary Contact Composition
  1 NO + 1 NC
• Front Cover
  With
• Coil Technology
  Built-in bidirectional peak limiting
• Insulation Resistance
  > 10 MOhm signalling circuit
• Inrush Power In W
  11 W 68 °F (20 °C)
• Coil Type
  DC low consumption
• Average Impedance
  1.5 mOhm - Ith 60 A 50 Hz power circuit
• Range
  TeSys
• Mechanical Durability
  6 Mcycles
• Signalling Circuit Frequency
  25...400 Hz
• Product Or Component Type
  Contactor
• Heat Dissipation
  0.5 W
Device Short Name
LC1D
[Uc] Control Circuit Voltage
24 V DC
Rated Breaking Capacity
800 A 440 V power circuit IEC 60947
Maximum Operating Rate
3600 cyc/h 140 °F (60 °C)
Minimum Switching Voltage
17 V signalling circuit
[Ui] Rated Insulation Voltage
Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1
Contactor Application
Motor control Resistive load
Non-Overlap Time
1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
[Ith] Conventional Free Air Thermal Current
60 A 140 °F (60 °C) power circuit 10 A 140 °F (60 °C) signalling circuit
Power Dissipation Per Pole
5.4 W AC-1 2.4 W AC-3
[Ie] Rated Operational Current
60 A 140 °F (60 °C)) <= 440 V AC-1 power circuit 40 A 140 °F (60 °C)) <= 440 V AC-3 power circuit
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Utilisation Category
AC-1 AC-3
Auxiliary Contacts Type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
Mounting Support
Plate Rail
Electrical Durability
2 Mcycles 35 A AC-3 <= 440 V 0.7 Mcycles 60 A AC-1 <= 440 V
Associated Fuse Rating
80 A gG <= 690 V type 1 power circuit 80 A gG <= 690 V type 2 power circuit 10 A gG signalling circuit IEC 60947-5-1
Connections - Terminals
Power circuit EverLink BTR screw connectors 1 0.00…0.05 in² (1…35 mm²)solid Power circuit EverLink BTR screw connectors 2 0.00…0.04 in² (1…25 mm²)solid Power circuit EverLink BTR screw connectors 1 0.00…0.05 in² (1…35 mm²)flexible without cable
Tightening Torque
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.81 lbf.in (8 N.m) EverLink BTR screw connectors 0.04…0.05 in² (25…35 mm²) hexagon
Operating Time
55...65 ms closing 20...120 ms opening >= 17221) 20...80 ms opening >= 18011)
Irms Rated Making Capacity
800 A 440 V power circuit IEC 60947 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1
Control Circuit Voltage Limits
<= 0.1 Uc -40…158 °F (-40…70 °C) drop-out DC 0.8...1.2 Uc -40…140 °F (-40…60 °C) operational DC 1...1.2 Uc 140…158 °F (60…70 °C) operational DC
Standards
EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
[Icw] Rated Short-Time Withstand Current
72 A 104 °F (40 °C) - 10 min power circuit 165 A 104 °F (40 °C) - 1 min power circuit 320 A 104 °F (40 °C) - 10 s power circuit 720 A 104 °F (40 °C) - 1 s power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
Motor Power Kw
11 kW 220...230 V AC 50 Hz AC-3) 18.5 kW 380...400 V AC 50 Hz AC-3) 22 kW 415 V AC 50 Hz AC-3) 22 kW 440 V AC 50 Hz AC-3) 22 kW 500 V AC 50 Hz AC-3) 30 kW 660...690 V AC 50 Hz AC-3)
Motor Power HP (UL / CSA)
3 hp 115 V at AC 60 Hz for 1 phase 5 hp 230/240 V at AC 60 Hz for 1 phase 10 hp 200/208 V at AC 60 Hz for 3 phase 10 hp 230/240 V at AC 60 Hz for 3 phase 30 hp 460/480 V at AC 60 Hz for 3 phase 30 hp 575/600 V at AC 60 Hz for 3 ph
Product Certifications
CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)
