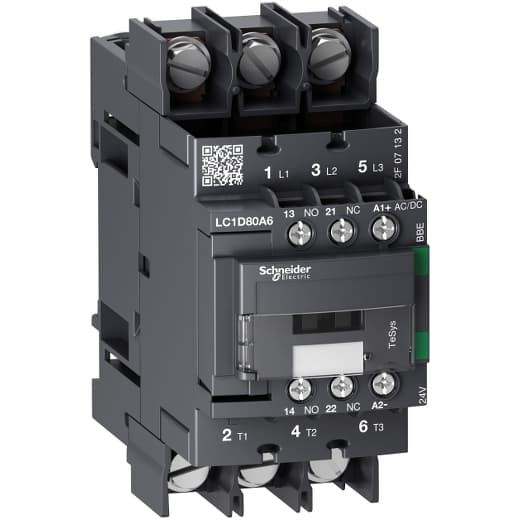

LC1D80A6BBE Schneider Electric Industrial Automation Components

Product Details

• Power Pole Contact Composition
  3 NO
• Heat Dissipation
  0.5 W
• [Uc] Control Circuit Voltage
  24 V DC
• Product Name
  TeSys D Green
• Overvoltage Category
  III
• Hold-In Power Consumption In W
  0.5 W 68 °F (20 °C)
• Device Short Name
  LC1D
• Rated Breaking Capacity
  1000 A 440 V power circuit IEC 60947
• Front Cover
  With
• Coil Technology
  Built-in bidirectional peak limiting
• [Ue] Rated Operational Voltage
  Power circuit <= 690 V AC 25...400 Hz
• Inrush Power In W
  11 W 68 °F (20 °C)
• Minimum Switching Voltage
  17 V signalling circuit
• Product Or Component Type
  Contactor
• [Uimp] Rated Impulse Withstand Voltage
  6 kV IEC 60947
• Insulation Resistance
  > 10 MOhm signalling circuit
• Poles Description
  3P
• Auxiliary Contact Composition
  1 NO + 1 NC
• Average Impedance
  1.5 mOhm - Ith 80 A 50 Hz power circuit
• Mechanical Durability
  6 Mcycles
Signalling Circuit Frequency
25...400 Hz
Range
TeSys
Coil Type
DC low consumption
Maximum Operating Rate
3600 cyc/h 140 °F (60 °C)
Minimum Switching Current
5 mA signalling circuit
Power Dissipation Per Pole
9.6 W AC-1 6.5 W AC-3
Utilisation Category
AC-1 AC-3
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Mounting Support
Rail Plate
Connections - Terminals
Power circuit lugs-ring terminals 0.65 in (16.5 mm)) Control circuit lugs-ring terminals 0.31 in (8 mm))
Auxiliary Contacts Type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
Electrical Durability
1 Mcycles 66 A AC-3 <= 440 V 0.5 Mcycles 80 A AC-1 <= 440 V
[Ie] Rated Operational Current
80 A 140 °F (60 °C)) <= 440 V AC-1 power circuit 66 A 140 °F (60 °C)) <= 440 V AC-3 power circuit
Non-Overlap Time
1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Operating Time
55...65 ms closing 20...80 ms opening
[Ith] Conventional Free Air Thermal Current
80 A 140 °F (60 °C) power circuit 10 A 140 °F (60 °C) signalling circuit
[Ui] Rated Insulation Voltage
Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1
Contactor Application
Resistive load Motor control
Associated Fuse Rating
125 A gG <= 690 V type 1 power circuit 125 A gG <= 690 V type 2 power circuit 10 A gG signalling circuit IEC 60947-5-1
Irms Rated Making Capacity
140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 1000 A 440 V AC power circuit IEC 60947
Control Circuit Voltage Limits
<= 0.1 Uc -40…158 °F (-40…70 °C) drop-out DC 0.8...1.2 Uc -40…140 °F (-40…60 °C) operational DC 1...1.2 Uc 140…158 °F (60…70 °C) operational DC
Tightening Torque
Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals flat Ø 6 mm M3.5 Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals Philips No 2 M3.5 Power circuit 53.10 lbf.in (6 N.m) lugs-ring terminals hexagonal 0.39 in (10 mm) M6
Standards
EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
[Icw] Rated Short-Time Withstand Current
110 A 104 °F (40 °C) - 10 min power circuit 260 A 104 °F (40 °C) - 1 min power circuit 520 A 104 °F (40 °C) - 10 s power circuit 900 A 104 °F (40 °C) - 1 s power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling cir
Motor Power Kw
18.5 kW 220...230 V AC 50 Hz AC-3) 37 kW 380...400 V AC 50 Hz AC-3) 37 kW 415 V AC 50 Hz AC-3) 37 kW 440 V AC 50 Hz AC-3) 37 kW 500 V AC 50 Hz AC-3) 37 kW 660...690 V AC 50 Hz AC-3)
Motor Power HP (UL / CSA)
5 hp 115 V at AC 60 Hz for 1 phase 10 hp 230/240 V at AC 60 Hz for 1 phase 20 hp 200/208 V at AC 60 Hz for 3 phase 20 hp 230/240 V at AC 60 Hz for 3 phase 40 hp 460/480 V at AC 60 Hz for 3 phase 50 hp 575/600 V at AC 60 Hz for 3 p
Product Certifications
CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)
