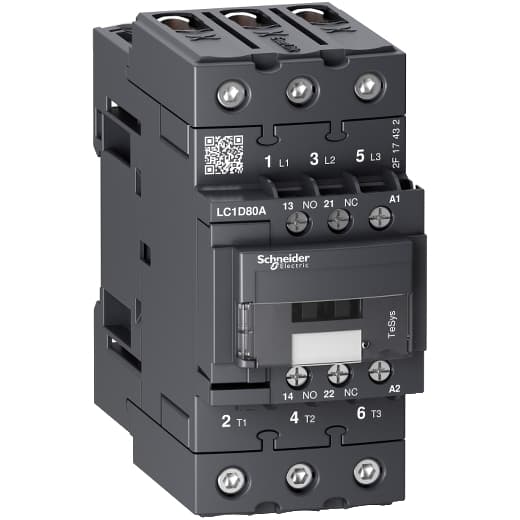

LC1D80AG7 Schneider Electric Industrial Automation Components

Product Details

• Motor Power HP (UL / CSA)
  5 hp 115 V at AC 60 Hz for 1 phase 10 hp 230/240 V at AC 60 Hz for 1 phase 20 hp 200/208 V at AC 60 Hz for 3 phase 20 hp 230/240 V at AC 60 Hz for 3 phase 40 hp 460/480 V at AC 60 Hz for 3 phase 50 hp 575/600 V at AC 60 Hz for 3 p
• Motor Power Kw
  18.5 kW 220...230 V AC 50 Hz AC-3) 37 kW 380...400 V AC 50 Hz AC-3) 37 kW 415 V AC 50 Hz AC-3) 37 kW 440 V AC 50 Hz AC-3) 37 kW 500 V AC 50 Hz AC-3) 37 kW 660...690 V AC 50 Hz AC-3)
• [Icw] Rated Short-Time Withstand Current
  520 A 104 °F (40 °C) - 10 s power circuit 900 A 104 °F (40 °C) - 1 s power circuit 110 A 104 °F (40 °C) - 10 min power circuit 260 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling cir
• Standards
  EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
• Control Circuit Voltage Limits
  0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 60 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 60 Hz
• Connections - Terminals
  Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end Power circuit EverLink BTR screw connectors 1 0.00…0.05 in² (1…35 mm²
• Tightening Torque
  Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.81 lbf.in (8 N.m) EverLink BTR screw connectors 0.04…0.05 in² (25…35 mm²) hexagon
• Irms Rated Making Capacity
  140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 1000 A 440 V AC power circuit IEC 60947
• Associated Fuse Rating
  10 A gG signalling circuit IEC 60947-5-1 125 A gG <= 690 V type 1 power circuit 125 A gG <= 690 V type 2 power circuit
• Auxiliary Contacts Type
  Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
• Electrical Durability
  0.7 Mcycles 80 A AC-1 <= 440 V 1 Mcycles 66 A AC-3 <= 440 V
• Safety Reliability Level
  B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Non-Overlap Time
  1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
• Operating Time
  4...19 ms opening 12...26 ms closing
• [Ie] Rated Operational Current
  80 A 140 °F (60 °C)) <= 440 V AC-1 power circuit 66 A 140 °F (60 °C)) <= 440 V AC-3 power circuit
• Mounting Support
  Plate Rail
• [Ui] Rated Insulation Voltage
  Signalling circuit 690 V IEC 60947-1 Power circuit 690 V IEC 60947-4-1
• [Ue] Rated Operational Voltage
  Power circuit 690 V AC 25...400 Hz Power circuit 300 V DC
• Utilisation Category
  AC-1 AC-3
• Power Dissipation Per Pole
  9.6 W AC-1 6.5 W AC-3
Hold-In Power Consumption In VA
13 VA 60 Hz 0.3 68 °F (20 °C))
Signalling Circuit Frequency
25...400 Hz
Mechanical Durability
6 Mcycles
Insulation Resistance
> 10 MOhm signalling circuit
Minimum Switching Voltage
17 V signalling circuit
Minimum Switching Current
5 mA signalling circuit
Heat Dissipation
4…5 W 60 Hz
Inrush Power In VA
140 VA 60 Hz 0.75 68 °F (20 °C))
Coil Technology
Without built-in suppressor module
Maximum Operating Rate
3600 cyc/h 140 °F (60 °C)
Product Certifications
CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)
Front Cover
With
Average Impedance
1.5 mOhm - Ith 80 A 50 Hz power circuit
Rated Breaking Capacity
1000 A 440 V power circuit IEC 60947
[Uc] Control Circuit Voltage
120 V AC 60 Hz
[Ith] Conventional Free Air Thermal Current
10 A 140 °F (60 °C) signalling circuit 80 A 140 °F (60 °C) power circuit
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947
Overvoltage Category
III
Auxiliary Contact Composition
1 NO + 1 NC
Control Circuit Type
AC 60 Hz
Contactor Application
Motor control Resistive load
Product Or Component Type
Contactor
Power Pole Contact Composition
3 NO
Poles Description
3P
Device Short Name
LC1D
Range
TeSys
Product Name
TeSys D
