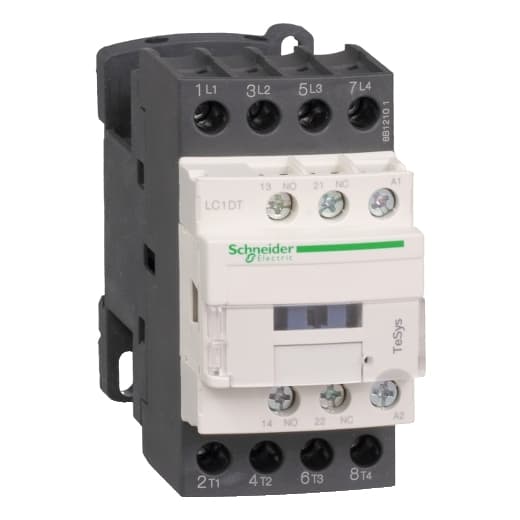

LC1DT40MD Schneider Electric Industrial Automation Components

Product Details

• Power Pole Contact Composition
  4 NO
• Range
  TeSys
• Product Or Component Type
  Contactor
• Coil Technology
  Built-in bidirectional peak limiting diode suppressor
• Utilisation Category
  AC-1
• Device Short Name
  LC1D
• Rated Breaking Capacity
  450 A 440 V power circuit IEC 60947
• Product Name
  TeSys D
• Mechanical Durability
  30 Mcycles
• Minimum Switching Current
  5 mA signalling circuit
• [Uc] Control Circuit Voltage
  220 V DC
• Power Dissipation Per Pole
  3.2 W AC-1
• Contactor Application
  Resistive load
• [Uimp] Rated Impulse Withstand Voltage
  6 kV IEC 60947
• Poles Description
  4P
• Overvoltage Category
  III
• Electrical Durability
  1.4 Mcycles 40 A AC-1 <= 440 V
• Hold-In Power Consumption In W
  5.4 W 68 °F (20 °C)
• [Ie] Rated Operational Current
  40 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
• Inrush Power In W
  5.4 W 68 °F (20 °C))
Control Circuit Type
DC standard
Average Impedance
2 mOhm - Ith 40 A 50 Hz power circuit
Minimum Switching Voltage
17 V signalling circuit
Auxiliary Contact Composition
1 NO + 1 NC
Front Cover
With
Maximum Operating Rate
3600 cyc/h 140 °F (60 °C)
Time Constant
28 ms
Signalling Circuit Frequency
25...400 Hz
Insulation Resistance
> 10 MOhm for signalling circuit
[Ith] Conventional Free Air Thermal Current
10 A 140 °F (60 °C) signalling circuit 40 A 140 °F (60 °C) power circuit
[Ue] Rated Operational Voltage
Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
Auxiliary Contacts Type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
Operating Time
16...24 ms opening 53.55...72.45 ms closing
Mounting Support
Plate Rail
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Non-Overlap Time
1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Irms Rated Making Capacity
140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 450 A 440 V power circuit IEC 60947
Associated Fuse Rating
10 A gG signalling circuit IEC 60947-5-1 63 A gG <= 690 V type 1 power circuit 40 A gG <= 690 V type 2 power circuit
Control Circuit Voltage Limits
0.1...0.25 Uc -40…158 °F (-40…70 °C) drop-out DC 0.7...1.25 Uc -40…140 °F (-40…60 °C) operational DC 1...1.25 Uc 140…158 °F (60…70 °C) operational DC
Connections - Terminals
Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)fle
Tightening Torque
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 15.05 lbf.in (1.7 N.m) connector flat Ø 6 mm Power circuit 15.05 lbf.in (1.7 N.
Standards
CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
[Icw] Rated Short-Time Withstand Current
50 A 104 °F (40 °C) - 10 min power circuit 120 A 104 °F (40 °C) - 1 min power circuit 240 A 104 °F (40 °C) - 10 s power circuit 380 A 104 °F (40 °C) - 1 s power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
[Ui] Rated Insulation Voltage
Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL Power circuit 690 V IEC 60947-4-1
Product Certifications
UL CCC GOST GL LROS (Lloyds register of shipping) CSA RINA BV DNV
