LC1DT60AB7 Schneider Electric Industrial Automation Components


Part#:LC1DT60AB7
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

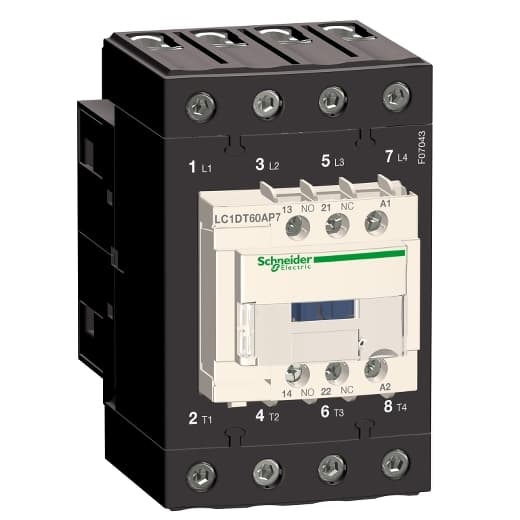

Schneider Electric LC1DT60AB7 is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminals and screw connections. This 4-pole (4P; 4NO) contactor is designed for a rated current of 60A (AC-1) and can be mounted on a DIN rail. It has a net width of 70 mm and offers a degree of protection of IP20. The control voltage ranges from 19.2-26.4Vac (24Vac nominal; 50Hz; 0.8...1.1 x Uc) to 20.4-26.4Vac (24Vac nominal; 60Hz; 0.85...1.1 x Uc), with a rated operating voltage (Ue) of 690 V. It includes 1 NO and 1 NC auxiliary contacts, with a contact type of 1NO+1NC instantaneous auxiliaries. The LC1DT60AB7 is rated for an impulse voltage (Uimp) of 6 kV and has a mechanical durability of 6 million operations at no load. The rated voltage (AC) for phase-to-phase connections is 690 V.
Product Details
- Power Pole Contact Composition 4 NO
- [Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947
- Coil Technology Without built-in suppressor module
- Contactor Application Resistive load
- Average Impedance 1.6 mOhm - Ith 60 A 50 Hz power circuit
- Utilisation Category AC-1
- [Ie] Rated Operational Current 60 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
- Mechanical Durability 6 Mcycles
- Product Name TeSys D
- Auxiliary Contact Composition 1 NO + 1 NC
- Range TeSys
- Control Circuit Type AC at 50/60 Hz
- Power Dissipation Per Pole 5.8 W AC-1
- Device Short Name LC1D
- Electrical Durability 1.4 Mcycles 60 A AC-1 <= 440 V
- Minimum Switching Current 5 mA signalling circuit
- Overvoltage Category III
- Poles Description 4P
- Product Or Component Type Contactor
- [Uc] Control Circuit Voltage 24 V AC 50/60 Hz
- Heat Dissipation 4…5 W 50/60 Hz
- Maximum Operating Rate 3600 cyc/h 140 °F (60 °C)
- Rated Breaking Capacity 800 A 440 V power circuit IEC 60947
- Front Cover With
- Insulation Resistance > 10 MOhm for signalling circuit
- Signalling Circuit Frequency 25...400 Hz
- Minimum Switching Voltage 17 V signalling circuit
- Hold-In Power Consumption In VA 13 VA 60 Hz 0.3 68 °F (20 °C)) 15 VA 50 Hz 0.3 68 °F (20 °C))
- [Ith] Conventional Free Air Thermal Current 10 A 140 °F (60 °C) signalling circuit 60 A 140 °F (60 °C) power circuit
- Operating Time 4...19 ms opening 12...26 ms closing
- Non-Overlap Time 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
- [Ue] Rated Operational Voltage Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
- Mounting Support Rail Plate
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
- Inrush Power In VA 140 VA 60 Hz 0.75 68 °F (20 °C)) 160 VA 50 Hz 0.75 68 °F (20 °C))
- Tightening Torque Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.81 lbf.in (8 N.m) screw clamp terminals 0.04…0.05 in² (25…35 mm²) hexagonal 0.16
- Irms Rated Making Capacity 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 800 A 440 V power circuit IEC 60947
- Associated Fuse Rating 10 A gG signalling circuit IEC 60947-5-1 80 A gG <= 690 V type 1 power circuit 80 A gG <= 690 V type 2 power circuit
- Connections - Terminals Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)fle
- Control Circuit Voltage Limits 0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz 0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz 1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
- Standards CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
- [Ui] Rated Insulation Voltage Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL Power circuit 690 V IEC 60947-4-1
- [Icw] Rated Short-Time Withstand Current 320 A 104 °F (40 °C) - 10 s power circuit 720 A 104 °F (40 °C) - 1 s power circuit 72 A 104 °F (40 °C) - 10 min power circuit 165 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
- Product Certifications GL LROS (Lloyds register of shipping) BV CSA UL RINA CCC GOST DNV
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
