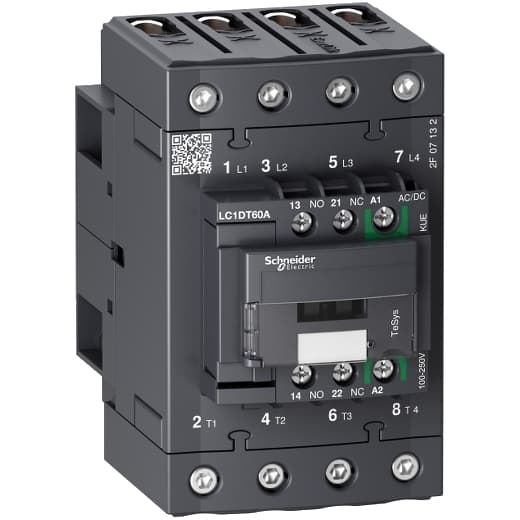

LC1DT60AKUE Schneider Electric Industrial Automation Components

Product Details

• Product Name
  TeSys D Green
• Overvoltage Category
  III
• Electrical Durability
  0.7 Mcycles 60 A AC-1 <= 440 V
• Coil Technology
  Built-in bidirectional peak limiting
• Minimum Switching Current
  5 mA signalling circuit
• Contactor Application
  Resistive load
• [Uimp] Rated Impulse Withstand Voltage
  6 kV IEC 60947
• Minimum Switching Voltage
  17 V signalling circuit
• Poles Description
  4P
• Rated Breaking Capacity
  800 A 440 V power circuit IEC 60947
• Hold-In Power Consumption In W
  1.2 W 68 °F (20 °C)
• Power Pole Contact Composition
  4 NO
• Power Dissipation Per Pole
  5.8 W AC-1
• Heat Dissipation
  1.2 W 50/60 Hz
• Utilisation Category
  AC-1
• Auxiliary Contact Composition
  1 NO + 1 NC
• Average Impedance
  1.6 mOhm - Ith 60 A 50 Hz power circuit
• Inrush Power In VA
  18 VA 50/60 Hz 68 °F (20 °C))
• [Ue] Rated Operational Voltage
  Power circuit <= 690 V AC 25...400 Hz
• Front Cover
  With
Maximum Operating Rate
3600 cyc/h 140 °F (60 °C)
Signalling Circuit Frequency
25...400 Hz
Device Short Name
LC1D
[Ie] Rated Operational Current
60 A 140 °F (60 °C)) <= 440 V AC-1 power circuit
Mechanical Durability
6 Mcycles
Range
TeSys
Hold-In Power Consumption In VA
1.8 VA 68 °F (20 °C)) 50/60 Hz
Insulation Resistance
> 10 MOhm for signalling circuit
Product Or Component Type
Contactor
Coil Type
AC/DC electronic
Inrush Power In W
14 W 68 °F (20 °C)
Auxiliary Contacts Type
Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
Mounting Support
Plate Rail
Operating Time
55...65 ms closing 20...80 ms opening
[Ui] Rated Insulation Voltage
Power circuit 690 V IEC 60947-4-1 Signalling circuit 690 V IEC 60947-1
[Ith] Conventional Free Air Thermal Current
60 A 140 °F (60 °C) power circuit 10 A 140 °F (60 °C) signalling circuit
[Uc] Control Circuit Voltage
100...250 V AC 50/60 Hz 100...250 V DC
Safety Reliability Level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Non-Overlap Time
1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Associated Fuse Rating
80 A gG <= 690 V type 1 power circuit 80 A gG <= 690 V type 2 power circuit 10 A gG signalling circuit IEC 60947-5-1
Irms Rated Making Capacity
800 A 440 V power circuit IEC 60947 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1
Tightening Torque
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.81 lbf.in (8 N.m) EverLink BTR screw connectors 0.04…0.05 in² (25…35 mm²) hexagon
Control Circuit Voltage Limits
<= 0.1 Uc -40…158 °F (-40…70 °C) drop-out AC/DC 0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC/DC 1...1.1 Uc 140…158 °F (60…70 °C) operational AC/DC
Connections - Terminals
Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)fl
Standards
EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
[Icw] Rated Short-Time Withstand Current
72 A 104 °F (40 °C) - 10 min power circuit 165 A 104 °F (40 °C) - 1 min power circuit 320 A 104 °F (40 °C) - 10 s power circuit 720 A 104 °F (40 °C) - 1 s power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circ
Product Certifications
CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping)
