LC1DT80A6BD Schneider Electric Industrial Automation Components


Part#:LC1DT80A6BD
Manufacturer:Schneider Electric
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

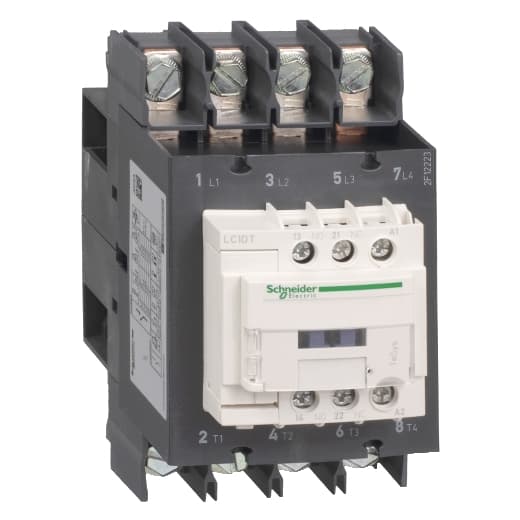

Schneider Electric LC1DT80A6BD is a magnetic contactor from the Deca sub-range, featuring EverLink(TM) terminals and ring-lugs connections. This 4-pole (4P; 4NO) contactor is designed for a rated current of 80A (AC-1) and can be mounted on a DIN rail. It has a net width of 70 mm and offers a degree of protection of IP20. The control voltage (DC) ranges from 18-30Vdc, with a nominal value of 24Vdc (0.75...1.25 x Uc). It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, both of the instantaneous type (1NO+1NC). The LC1DT80A6BD is engineered for mechanical durability up to 6,000,000 operations at no load and has a rated impulse voltage (Uimp) of 6 kV. The rated voltage (AC) for phase-to-phase connections is up to 690 V.
Product Details
- Standards CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
- [Icw] Rated Short-Time Withstand Current 520 A 104 °F (40 °C) - 10 s power circuit 900 A 104 °F (40 °C) - 1 s power circuit 110 A 104 °F (40 °C) - 10 min power circuit 260 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling cir
- [Ui] Rated Insulation Voltage Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL Power circuit 690 V IEC 60947-4-1
- Control Circuit Voltage Limits 0.1...0.3 Uc -40…158 °F (-40…70 °C) drop-out DC 0.75...1.25 Uc -40…140 °F (-40…60 °C) operational DC 1...1.25 Uc 140…158 °F (60…70 °C) operational DC
- Tightening Torque Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals flat Ø 6 mm M3.5 Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals Philips No 2 M3.5 Power circuit 53.10 lbf.in (6 N.m) lugs-ring terminals M6
- Associated Fuse Rating 10 A gG signalling circuit IEC 60947-5-1 125 A gG <= 690 V type 1 power circuit 125 A gG <= 690 V type 2 power circuit
- Irms Rated Making Capacity 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 1000 A 440 V power circuit IEC 60947
- Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
- Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Non-Overlap Time 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
- Mounting Support Rail Plate
- Connections - Terminals Control circuit lugs-ring terminals 0.31 in (8 mm)) Power circuit lugs-ring terminals 0.65 in (16.5 mm))
- [Ue] Rated Operational Voltage Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
- [Ith] Conventional Free Air Thermal Current 10 A 140 °F (60 °C) signalling circuit 80 A 140 °F (60 °C) power circuit
- Operating Time 42.5...57.5 ms closing 16...24 ms opening
- Insulation Resistance > 10 MOhm for signalling circuit
- Mechanical Durability 10 Mcycles
- Minimum Switching Current 5 mA signalling circuit
- Minimum Switching Voltage 17 V signalling circuit
- Coil Technology Built-in bidirectional peak limiting diode suppressor
- Maximum Operating Rate 3600 cyc/h 140 °F (60 °C)
- Signalling Circuit Frequency 25...400 Hz
- Hold-In Power Consumption In W 7.4 W 68 °F (20 °C)
- Inrush Power In W 19 W 68 °F (20 °C))
- Time Constant 34 ms
- Product Certifications UL GOST CSA CCC BV RINA GL LROS (Lloyds register of shipping) DNV
- Average Impedance 1.6 mOhm - Ith 80 A 50 Hz power circuit
- Front Cover With
- Electrical Durability 0.5 Mcycles 80 A AC-1 <= 440 V
- Power Dissipation Per Pole 10.2 W AC-1
- Overvoltage Category III
- Rated Breaking Capacity 1000 A 440 V power circuit IEC 60947
- [Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947
- Auxiliary Contact Composition 1 NO + 1 NC
- [Uc] Control Circuit Voltage 24 V DC
- Control Circuit Type DC standard
- [Ie] Rated Operational Current 80 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit
- Range TeSys
- Power Pole Contact Composition 4 NO
- Contactor Application Resistive load
- Utilisation Category AC-1
- Device Short Name LC1D
- Product Name TeSys D
- Product Or Component Type Contactor
- Poles Description 4P
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LC1DT80A6BD on Powermatic Associates is $529.66. Order now.
